5. Check Encoder Signal

1. Connect auto trunk motor connector.
2. Turn ignition switch ON.
3. Check the signal between auto trunk control unit connector B110 terminal 15 and ground with oscilloscope.

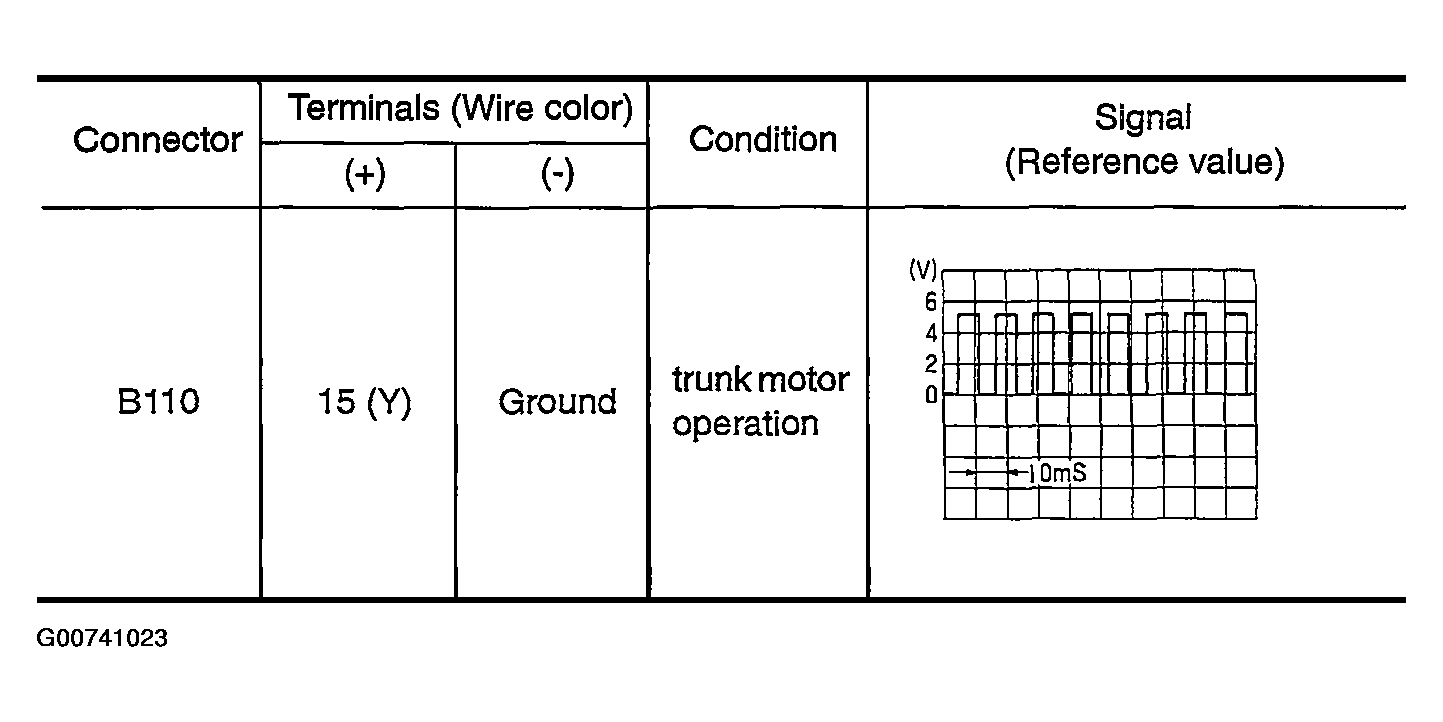

Fig 1: Checking Encoder Signal (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

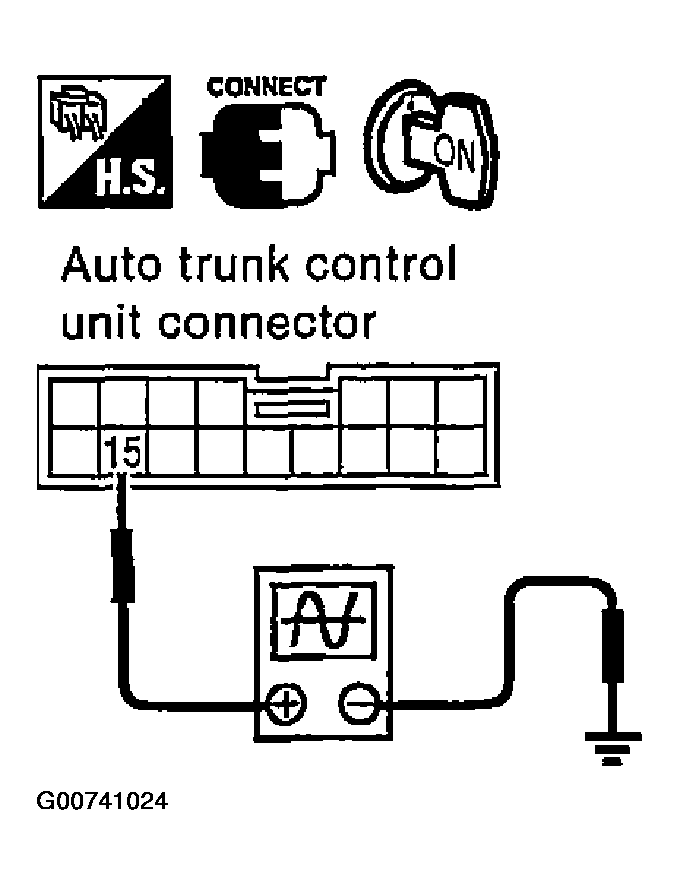

Fig 2: Checking Encoder Signal (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Encoder function is OK.
2. NG : GO TO 6.
