4. Check Weatherstrip Detection Switch

Check continuity between auto trunk motor terminals 1 and 4.

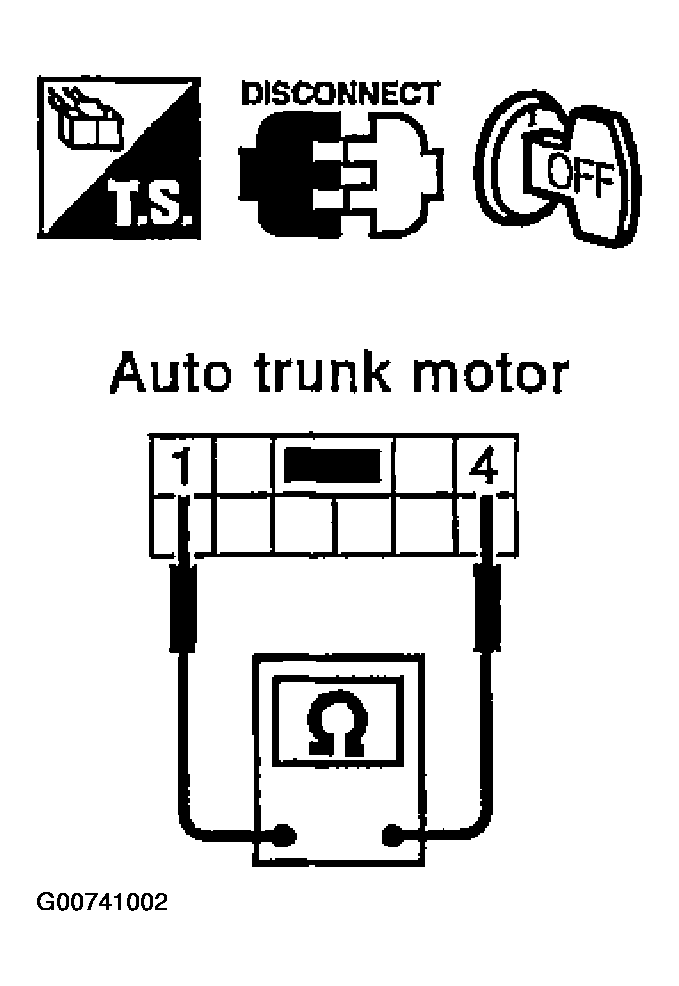

Fig 1: Checking Continuity Between Auto Trunk Motor Terminals 1 And 4 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

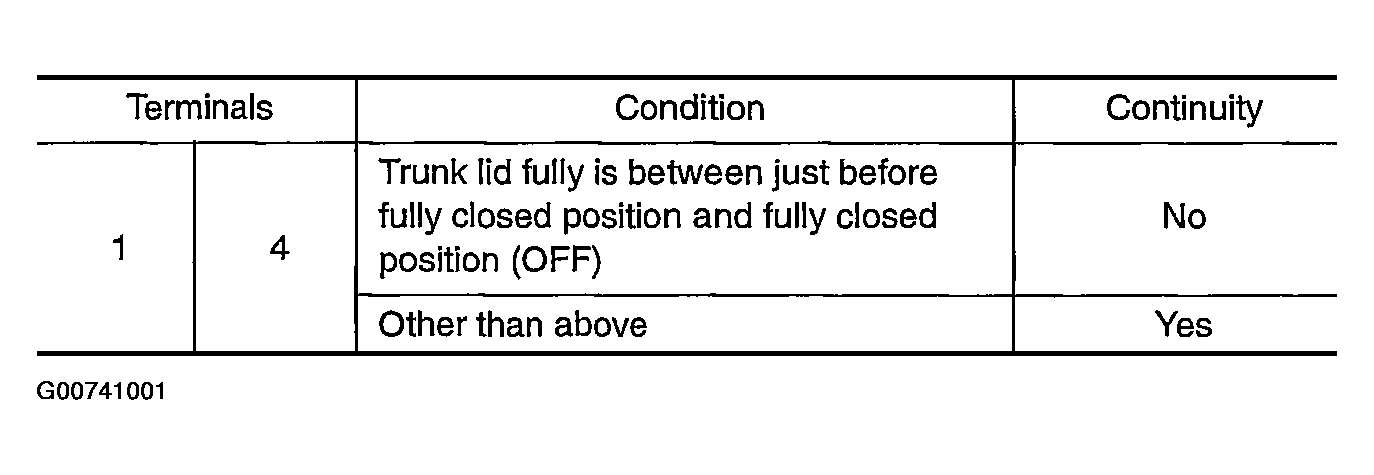

Fig 2: Checking Continuity Between Auto Trunk Motor Terminals 1 And 4 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace auto trunk control unit.
2. NG : Replace auto trunk motor.
