Procedure 2 (With CONSULT-II)

NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use. When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

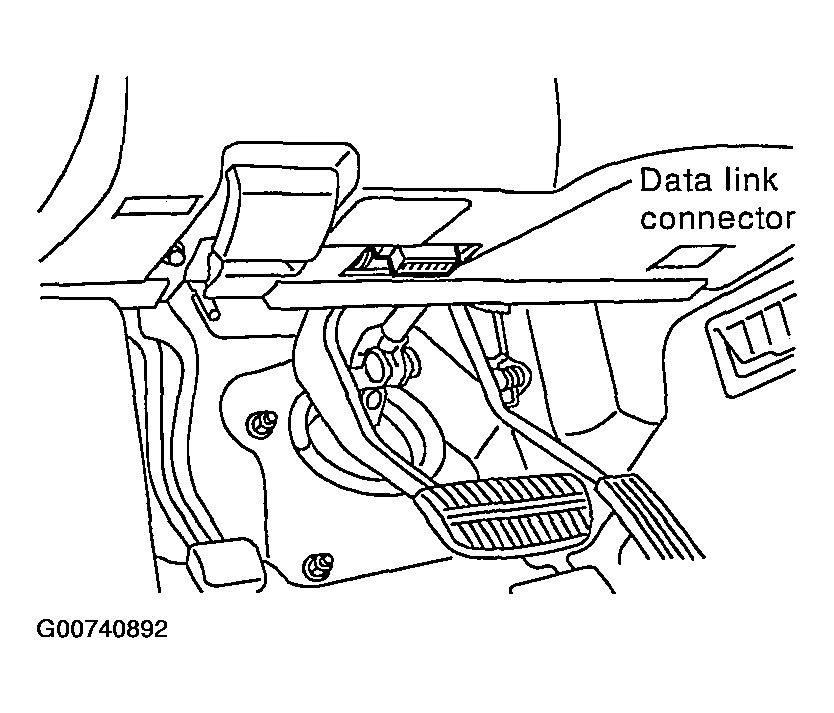

    Fig 1: Locating Data Link Connector
    G00740892Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)"
  5. Touch "IVMS"

    If "IVMS" is not indicated, go to CONSULT-II Data Link Connector (DLC) Circuit .

  6. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Touch "MULTI-REMOTE CONT SYS".
  9. Touch "WORK SUPPORT".
  10. The item shown on the figure at right can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a electronic key ID code is registered or not.

    • "REMO CONT ID REG" Use this mode to register a electronic key ID code.
      NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
    • "REMO CONT ID ERASUR" Use this mode to erase a electronic key ID code.
