A/T Shift Lock System
>>
Component Inspection
>>
Detention Switch
>>
For Shift:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
For Shift:
Check continuity between terminals of the A/T device harness connector terminals.

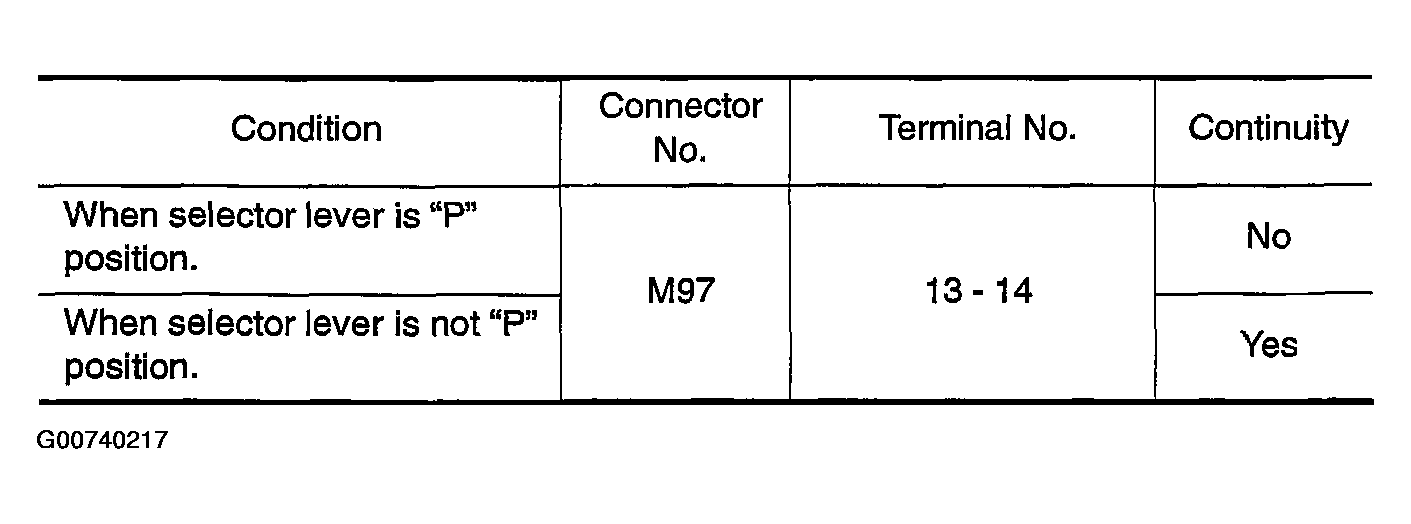

Fig 1: Checking continuity Of A/T Device Harness Connector (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

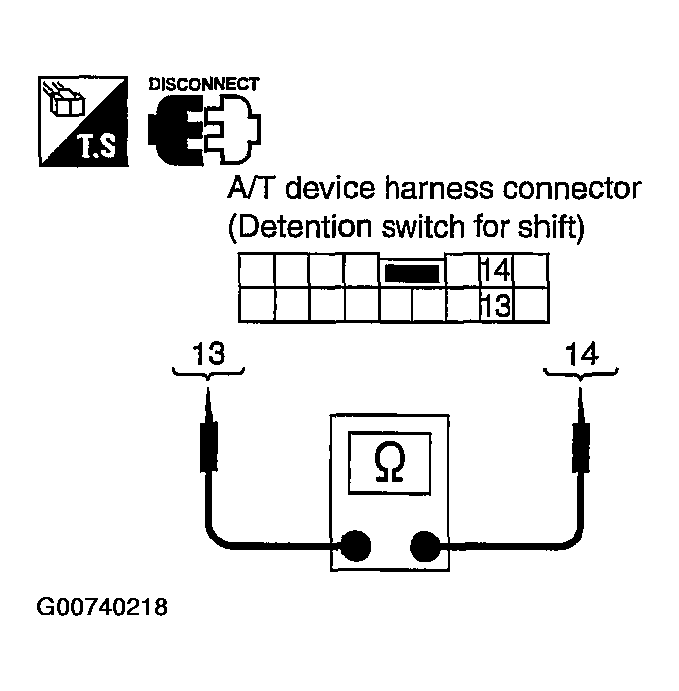

Fig 2: Checking continuity Of A/T Device Harness Connector (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
