Function Of Pressure Switch

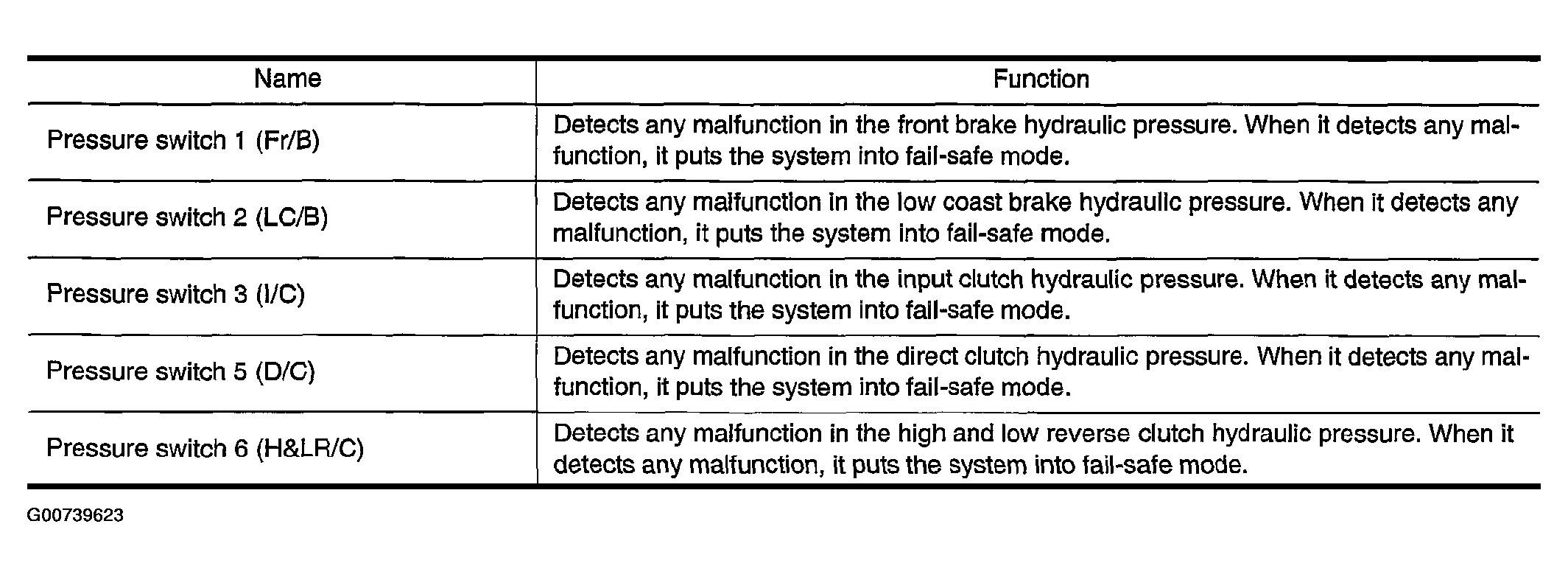

Fig 1: Function Of Pressure Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
