Control System Outline

The automatic transmission senses vehicle operating conditions through various sensors or signals. It always controls the optimum shift position and reduces shifting and lock-up shocks.

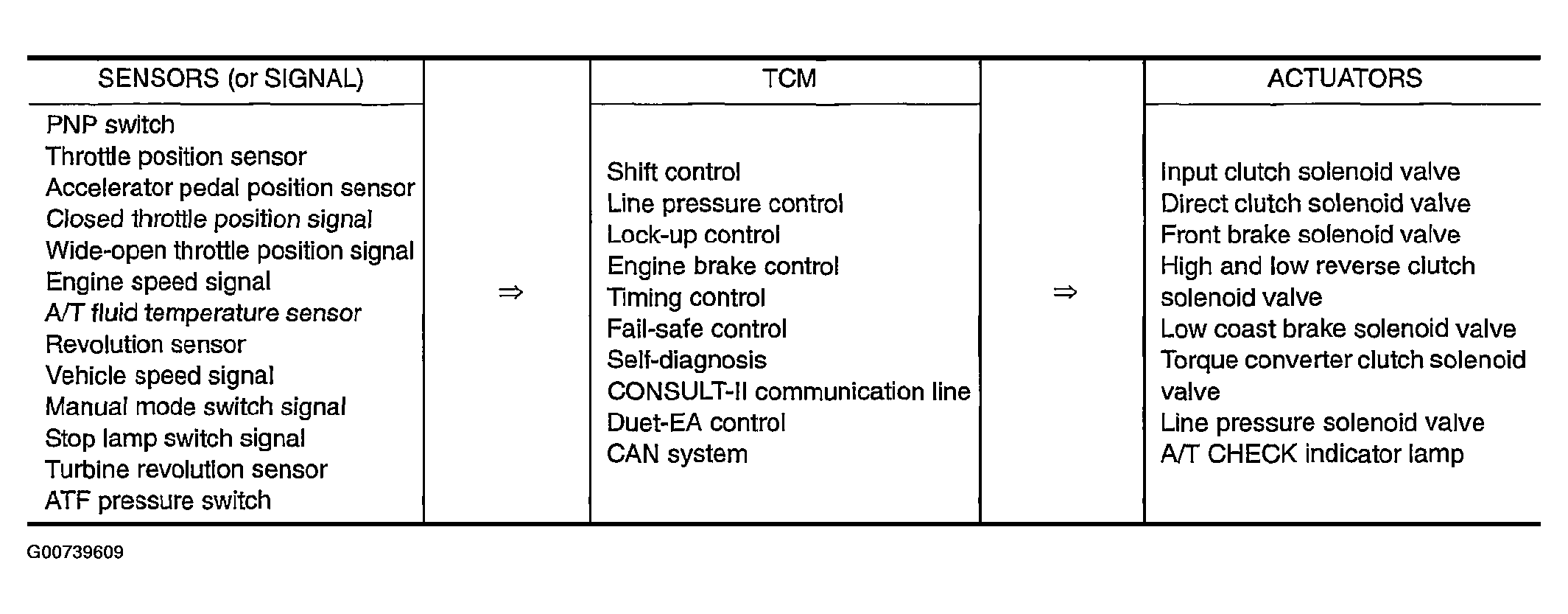

Fig 1: Control System Outline
G00739609Courtesy of NISSAN MOTOR CO., U.S.A.
