Check For Distance Switch

  1. Start the engine.
  2. Turn on the ON/OFF switch.
  3. Press the DISTANCE switch.
  4. Check if the set distance indicator changes display in order of: (long)-->(middle)-->(short).
NOTE: The set distance indicator shows 'long' immediately after the engine starts.

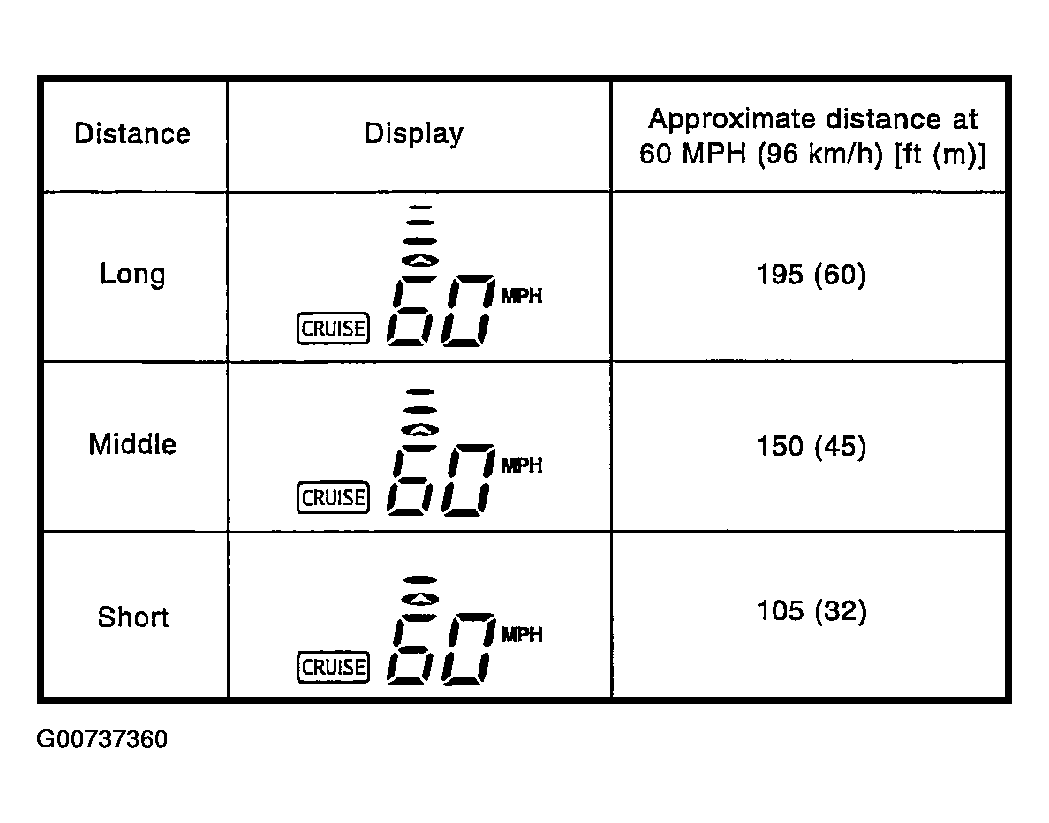

Fig 1: Identifying Set Distance Indicator
G00737360Courtesy of NISSAN MOTOR CO., U.S.A.
