3. Check Key Switch

Check continuity key switch terminals.

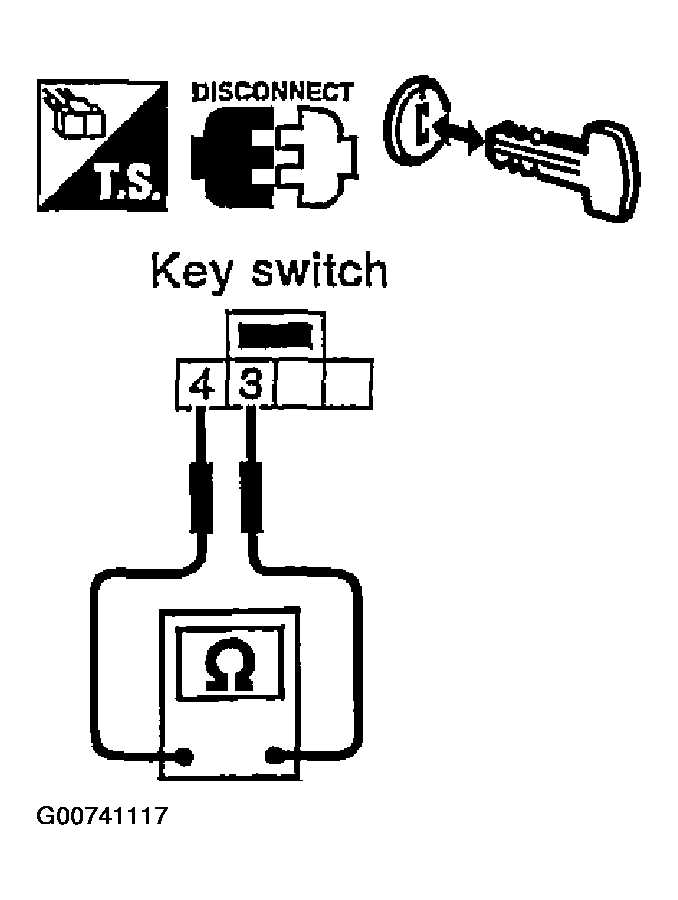

Fig 1: Checking Key Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

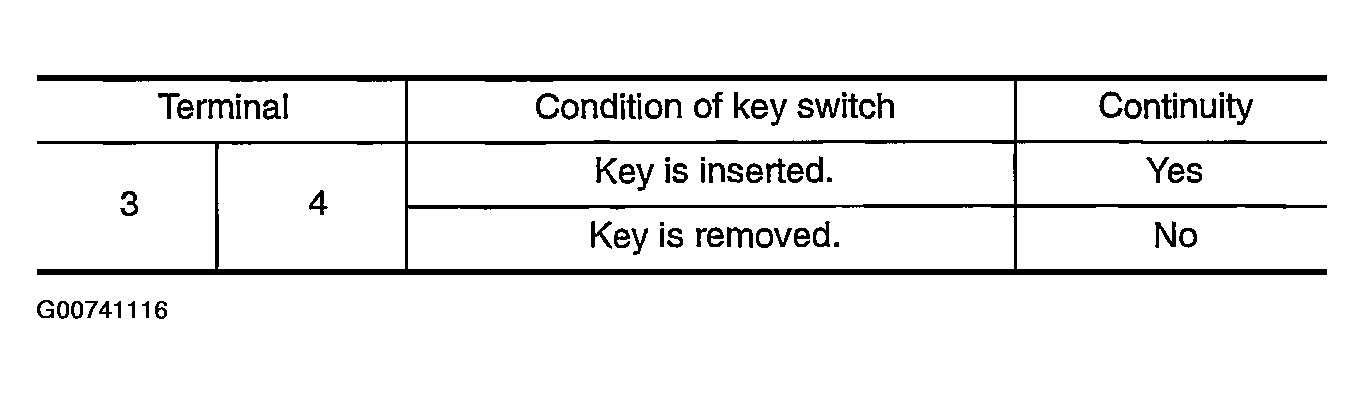

Fig 2: Checking Key Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Check the following.
   • 10A fuse [No. 32, located in fuse block (J/B) No. 2]
   • Harness for open or short between key switch and fuse
2. NG : Replace key switch.
