4. Check Harness Continuity

  1. Disconnect key switch connector.
  2. Check continuity between A/T device (detention switch) connector M97 terminal 6 and key switch and key lock solenoid connector M64 terminal 4.
    1. 6 (PU/W) - 4 (PU/W) : Continuity should exist,
  3. Check continuity between detention switch connector M97 terminal 6 and ground.
    1. 6 (PU/W) - Ground : Continuity should not exist  .

OK or NG

  1. OK : GO TO 5.
  2. NG : Repair or replace harness.

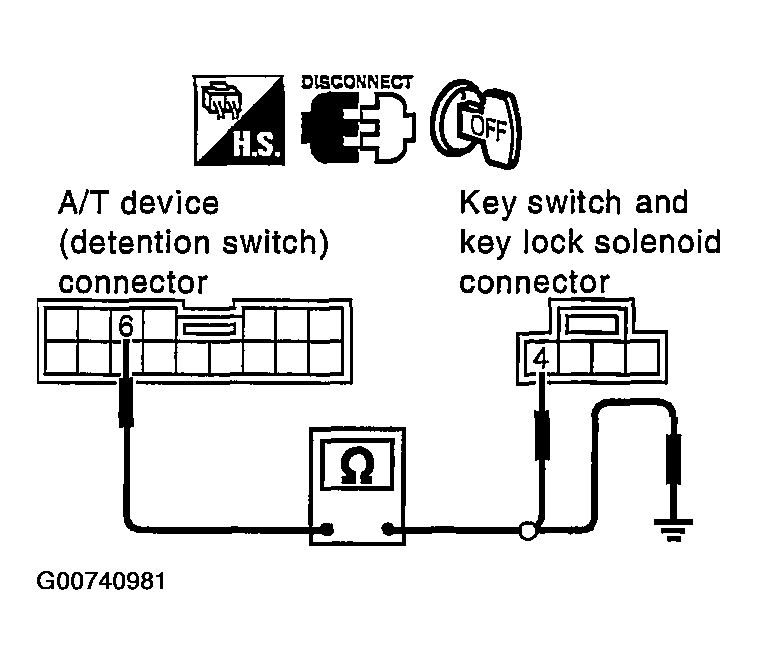

Fig 1: Checking Harness Continuity
G00740981Courtesy of NISSAN MOTOR CO., U.S.A.
