5. Check Key Switch

Check continuity between key switch terminals 3 and 4.

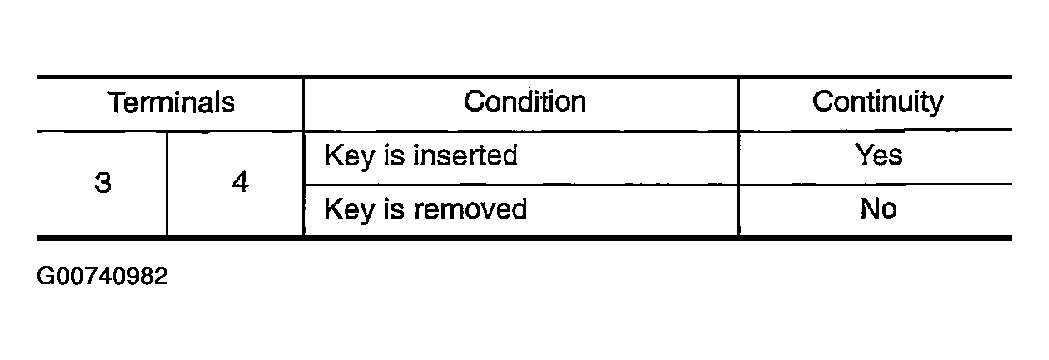

Fig 1: Checking Continuity Between Key Switch Terminals 3 And 4 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

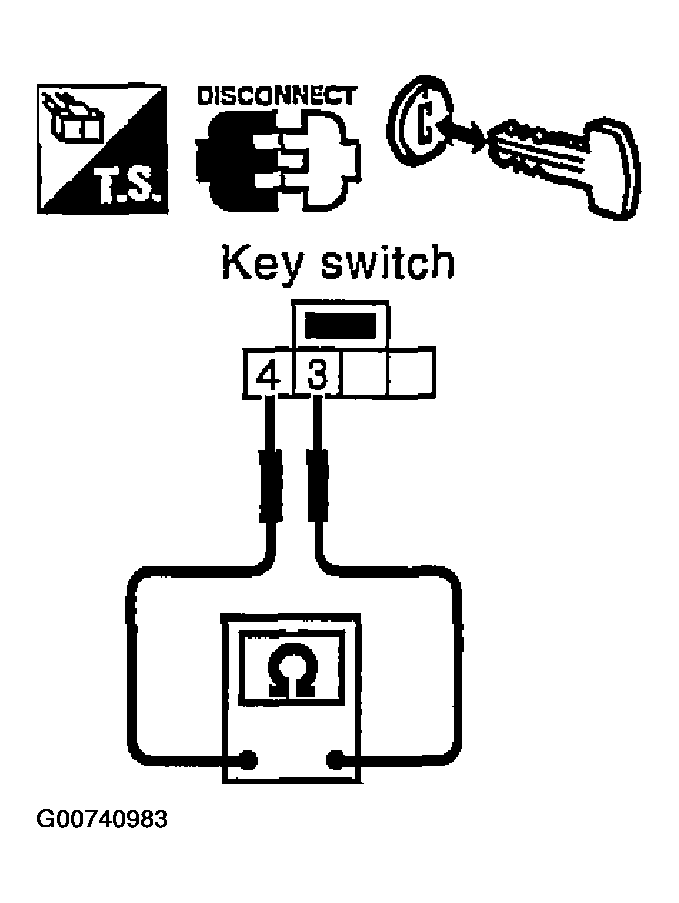

Fig 2: Checking Continuity Between Key Switch Terminals 3 And 4 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Check the following.
   • 10A fuse [No. 32, located in fuse block (J/B) No.2]
   • Harness for open or short between key switch and fuse.
2. NG : Repair or replace harness.
