Operating Condition

Any of the following operations during trunk lid auto operation stops the auto operation and shifts the operation to manual. Moving trunk lid manually to a position just before fully closed position activates the auto closure mechanism to close trunk lid completely.

• When trunk lid opener switch is operated.
• When trunk lid close switch is operated.
• When remote control trunk opening switch is operated (at least 0.5 seconds).
• When selector lever is shifted to a position other than "P" position (detention switch: ON).
• When vehicle speed becomes 7 km/h or higher.
• When auto operation does not end after 10 seconds since the start.
• With trunk lid position falls within ranges A and B in the figure, when trunk lid stops auto operation forcefully or because of pinched foreign material.

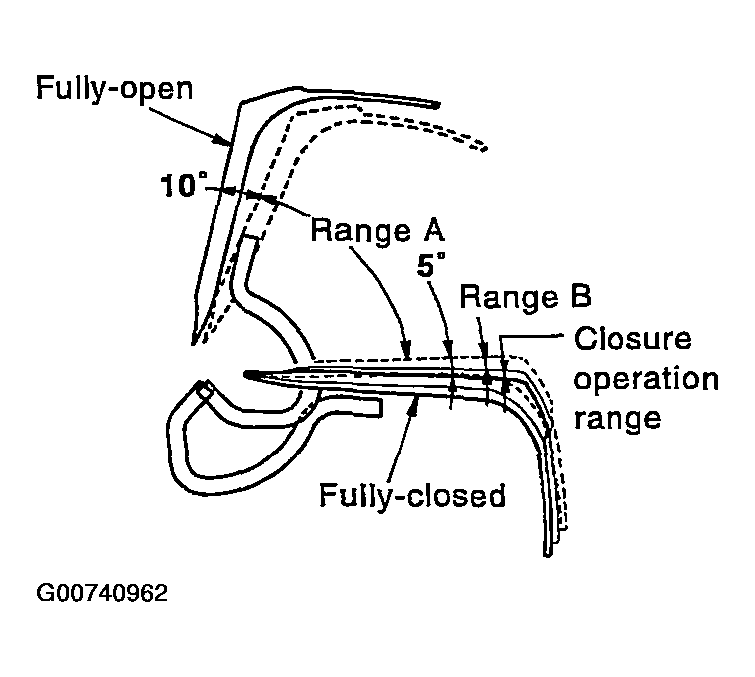

Fig 1: Trunk Lid Position

Courtesy of NISSAN MOTOR CO., U.S.A.
