Removal And Installation: Removal

  1. Open trunk lid.
  2. Remove rear parcel shelf finisher. Refer to REAR PARCEL SHELF FINISHER .
  3. Remove trunk motor assembly mounting bolts and nut.
    Fig 1: Remove Trunk Motor Assembly Mounting Bolts And Nut
    G00740964Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove trunk front finisher and trunk side finisher (LH).
  5. Disconnect trunk motor connector.
  6. Remove main arm mounting nut on trunk lid hinge.
  7. Remove mounting bolt and nut, and remove trunk motor assembly.

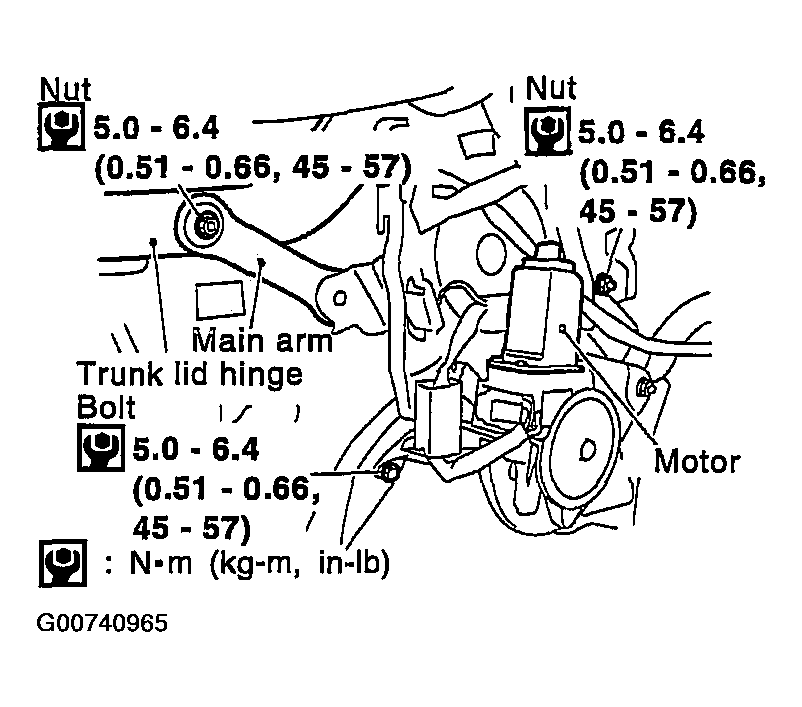

Fig 2: Removing & Installing Mounting Bolt & Nut, & Remove Trunk Motor Assembly
G00740965Courtesy of NISSAN MOTOR CO., U.S.A.
