3. Check Trunk Lid Close Switch
Check continuity between trunk lid close switch terminals 1 and 2.

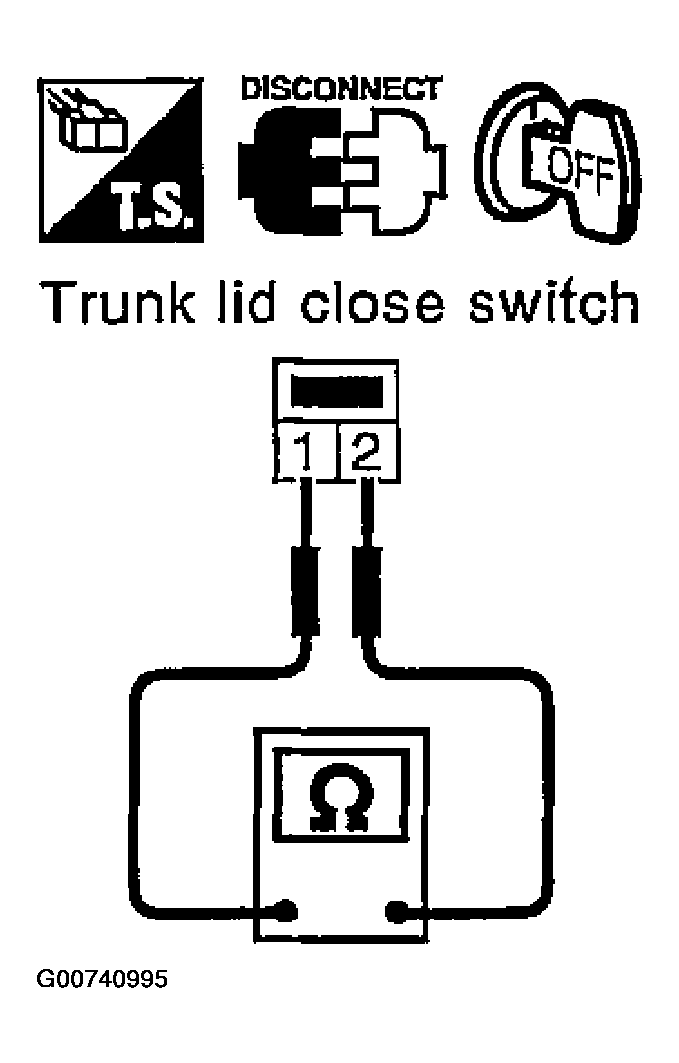

Fig 1: Checking Trunk Lid Close Switch (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

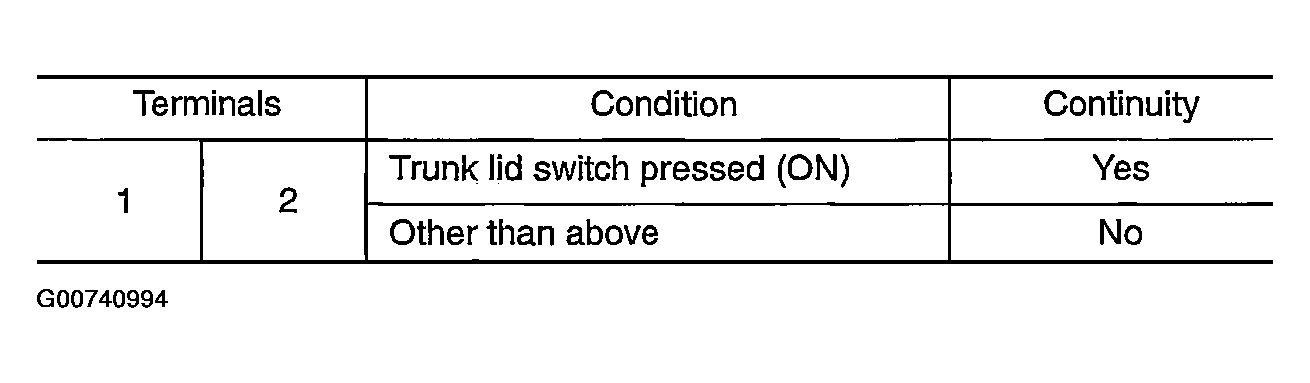

Fig 2: Checking Trunk Lid Close Switch (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK : GO TO 4.
NG : Replace trunk lid close switch.
