Without CONSULT-II

Check voltage between BCM connector and ground.

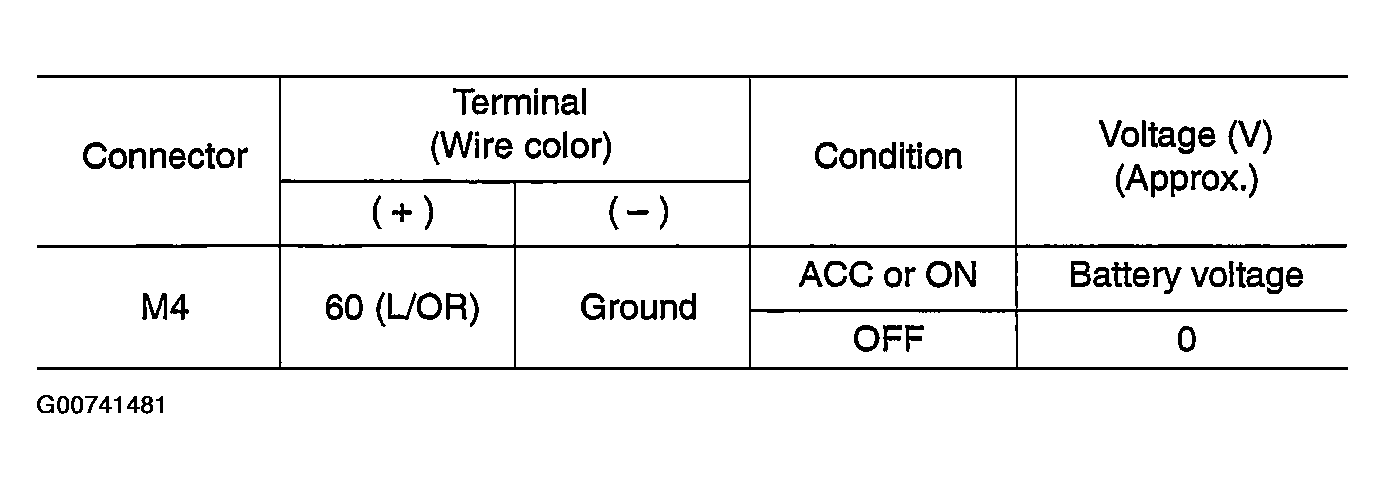

Fig 1: Checking ACC Power Without CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

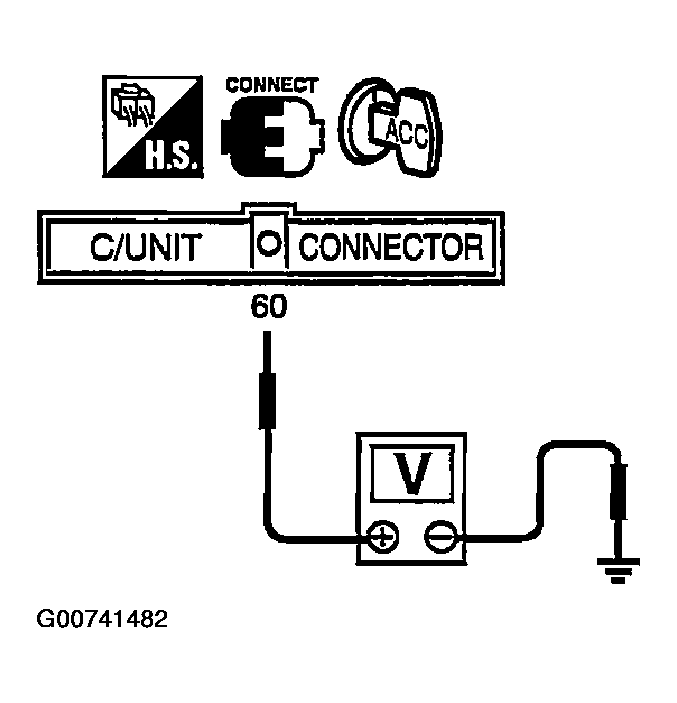

Fig 2: Checking ACC Power Without CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: ACC power is OK.
2. NG: Check the following.
   • 10A fuse [No. 21, located in fuse block (J/B) No. 1]
   • Harness for open or short between BCM and fuse
