2. Check Combination Flasher Unit Circuit

  1. Disconnect BCM and combination flasher unit connector.
  2. Check continuity between BCM connector M4 terminal 7 (W/L) and combination flasher unit connector M91 terminal 6 (W/L).
    1. 7 (W/L) - 6 (W/L) : Continuity should exist  .
  3. Check continuity between BCM connector M4 terminal 7 (W/L) and ground.
    1. 7 (W/L) - Ground : Continuity should not exist  .

OK or NG

  1. OK: Replace BCM.
  2. NG: Repair or replace harness.

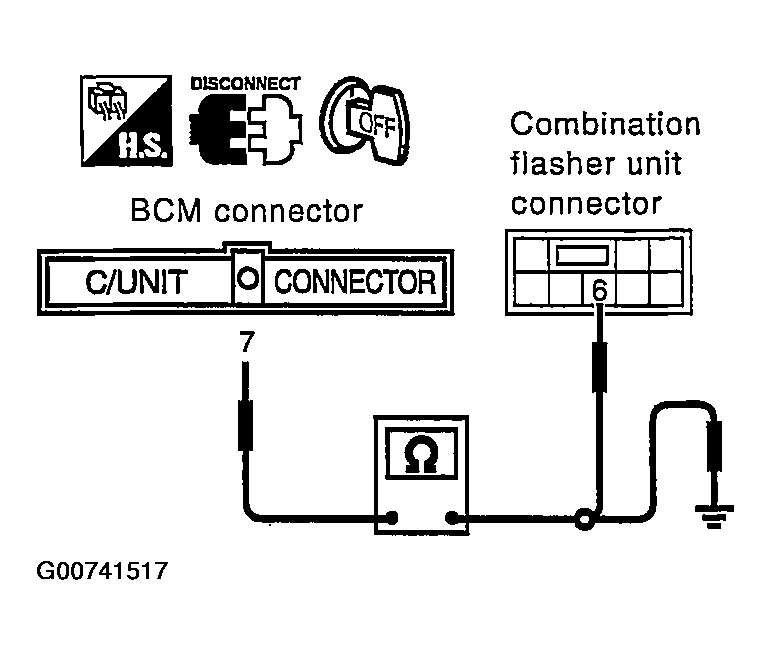

Fig 1: Checking Combination Flasher Unit Circuit
G00741517Courtesy of NISSAN MOTOR CO., U.S.A.
