Inspection with CONSULT-II

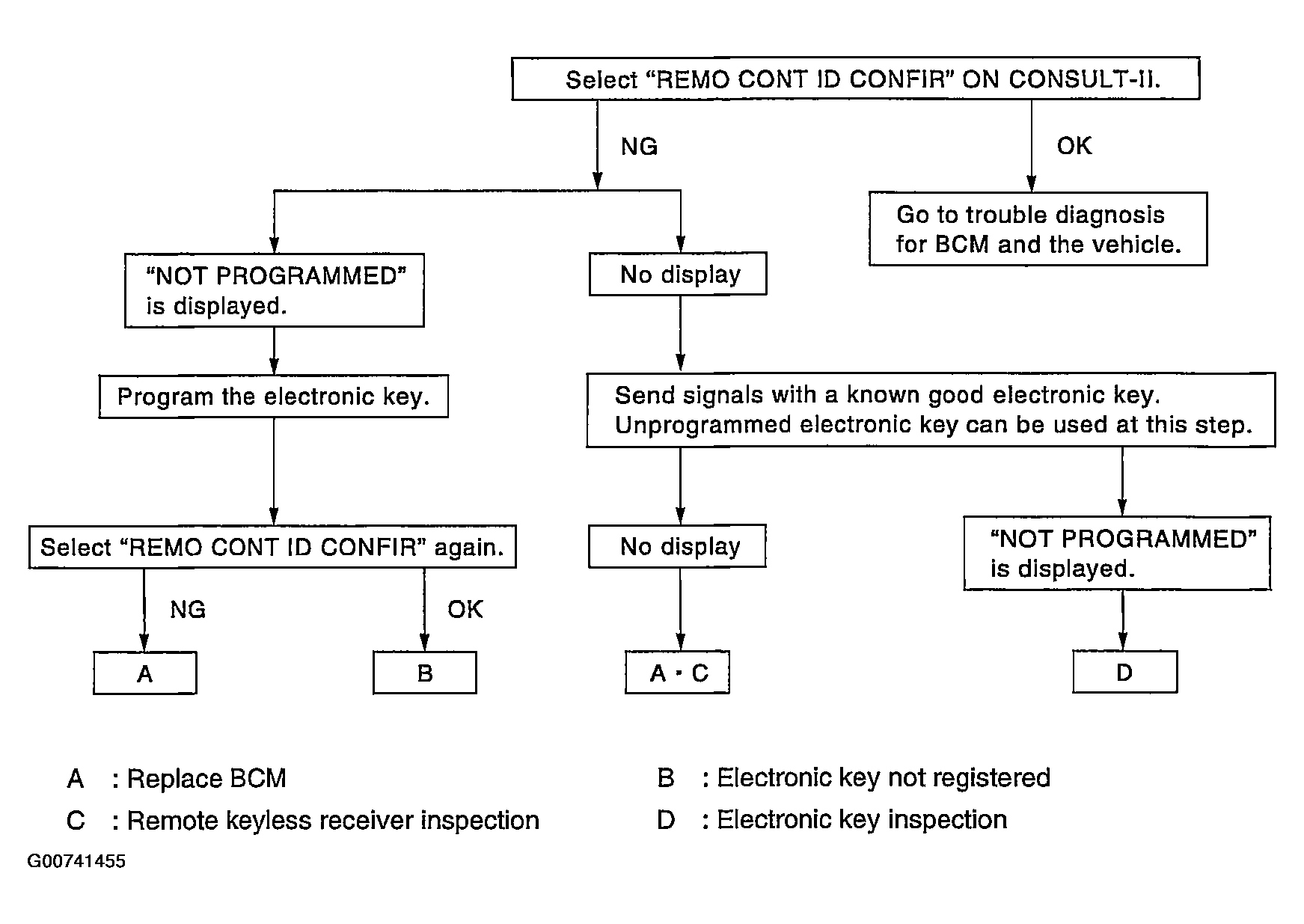

Fig 1: Inspection with CONSULT-II
G00741455Courtesy of NISSAN MOTOR CO., U.S.A.
