Terminal And Reference Value For Passenger And Rear LH, RH Door Control Unit

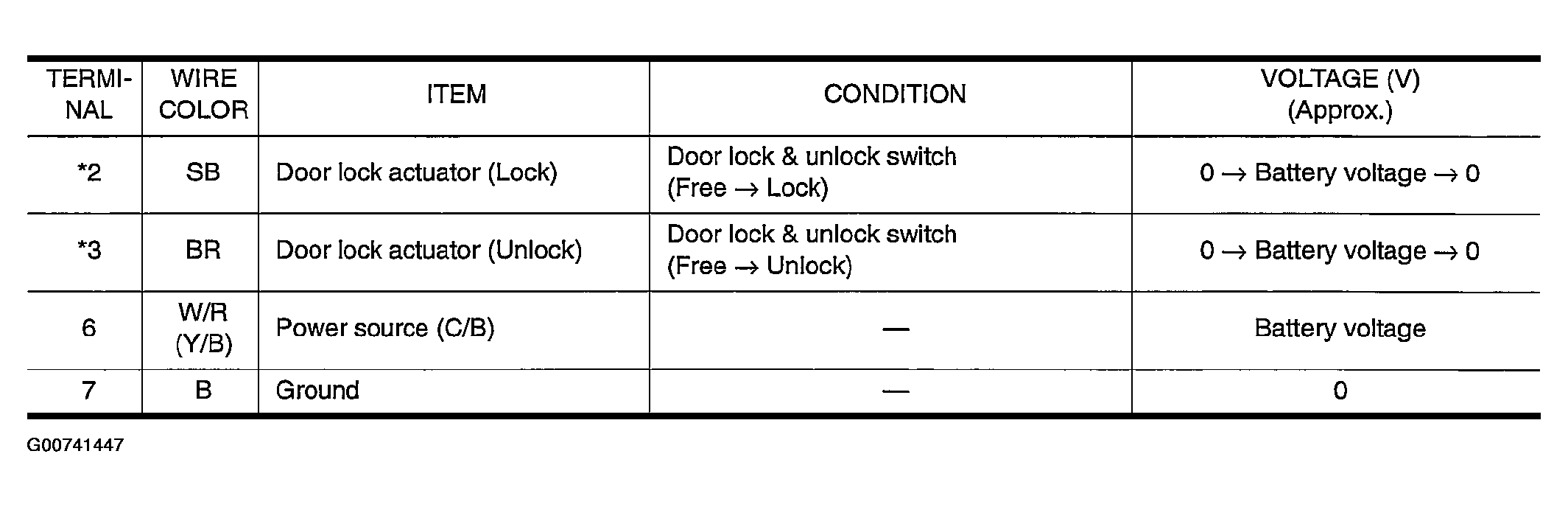

Fig 1: Terminal and Reference Value for Passenger And Rear LH, RH Door Control Unit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

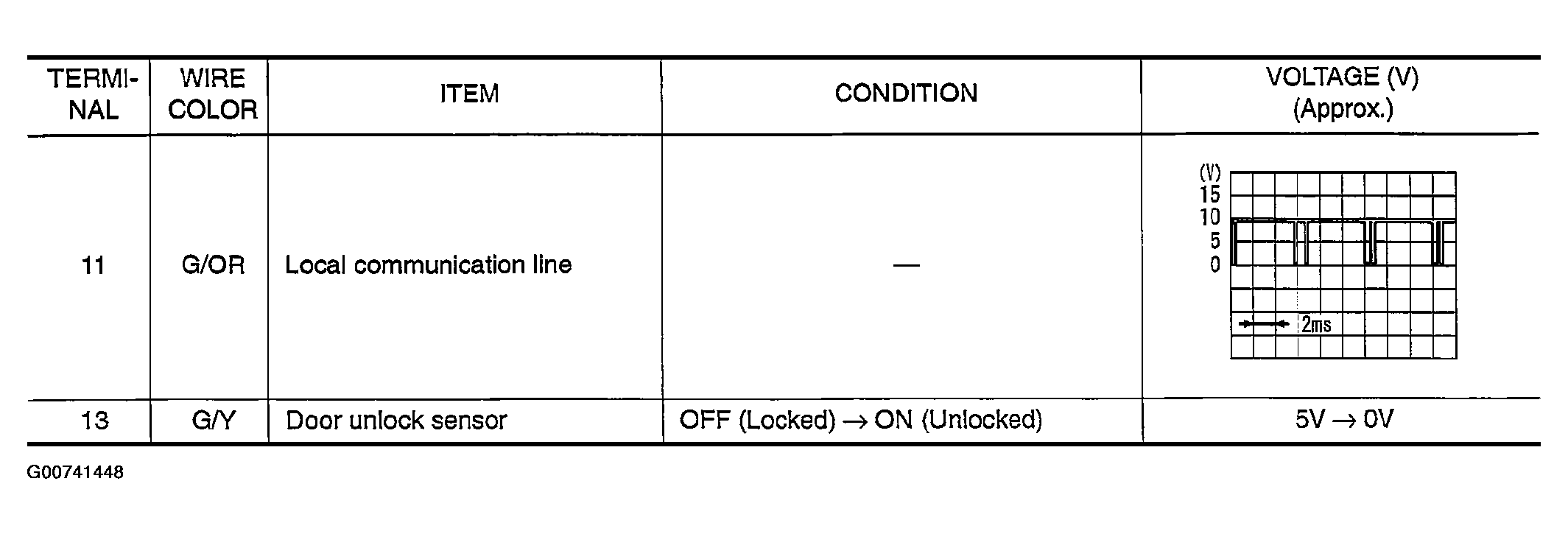

Fig 2: Terminal and Reference Value for Passenger And Rear LH, RH Door Control Unit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
