Operation Description

Trunk lid closing operation.

• With the striker switch: OFF (trunk lock pressed the striker switch), when the Lid lock switch is operated: ON to OFF (trunk lock is engaged with the striker).

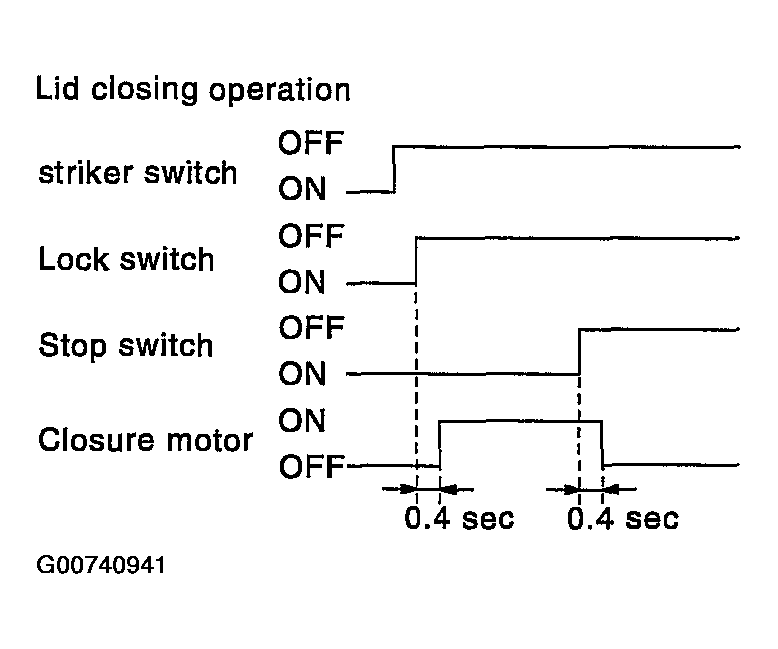

Fig 1: Trunk Lid Closing Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Trunk lid opening operation

• With the locking switch: ON (trunk lock is not engaged with the striker), when the striker switch is operated: OFF to ON (the trunk lock releases the striker switch).

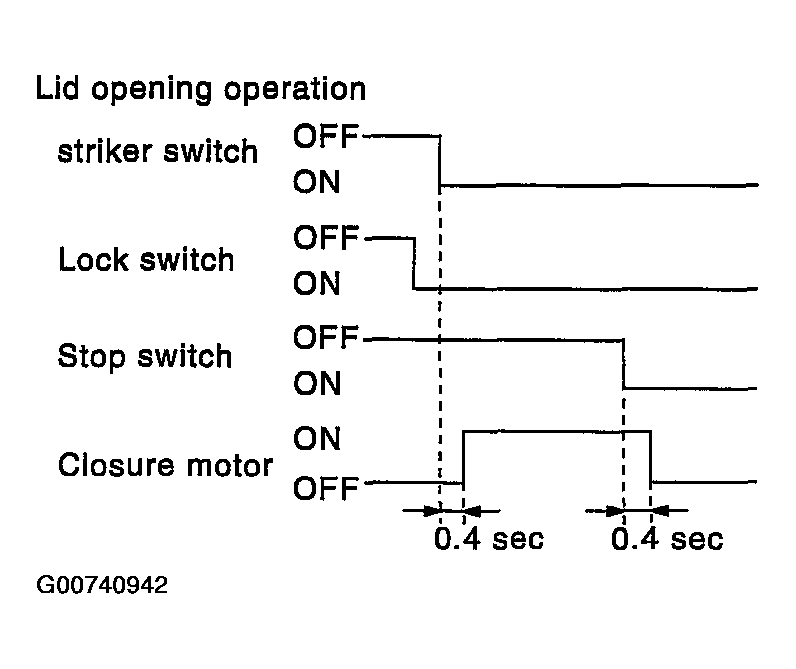

Fig 2: Trunk Lid Opening Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
