1. Trunk Lid Lock Switch Signal Check

1. Turn ignition switch OFF.
2. Check voltage between trunk closure control unit connector and ground.

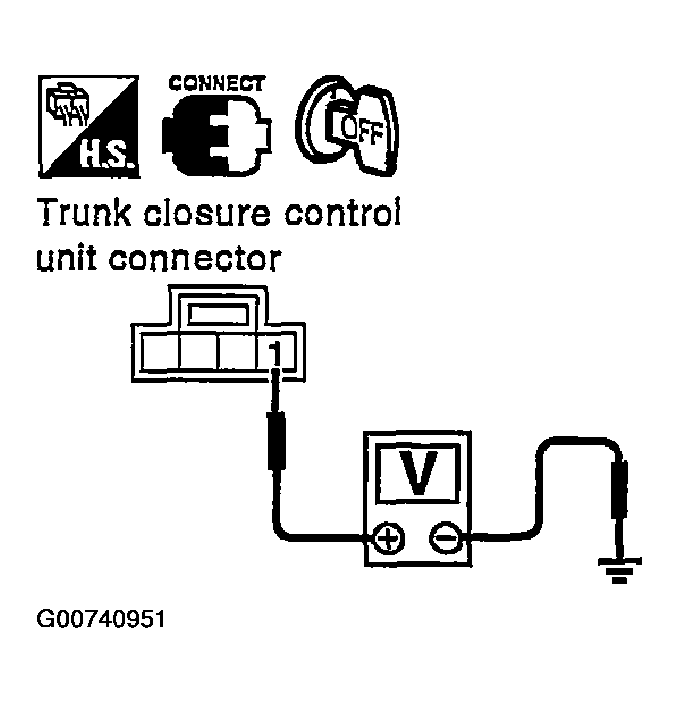

Fig 1: Trunk Lid Lock Switch Check (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

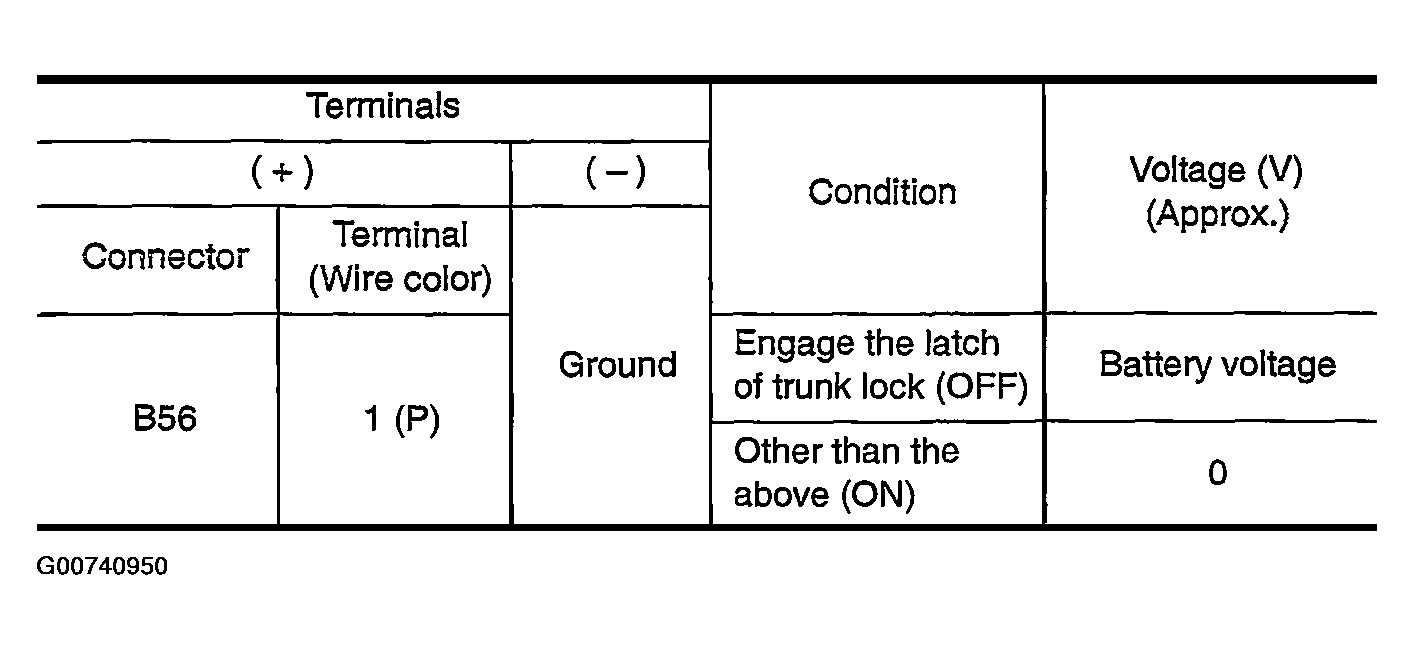

Fig 2: Trunk Lid Lock Switch Check (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Trunk lid lock switch is OK.
2. NG : GO TO 2.
