3. Trunk Lid Lock Switch Check

Check continuity between trunk lid lock switch connector B74 (without auto trunk) or B312 (with auto trunk) terminal 2 and ground.

  1. 2 (B) - Ground : Continuity should exist

OK or NG

  1. OK : GO TO 4.
  2. NG : Repair or replace harness.

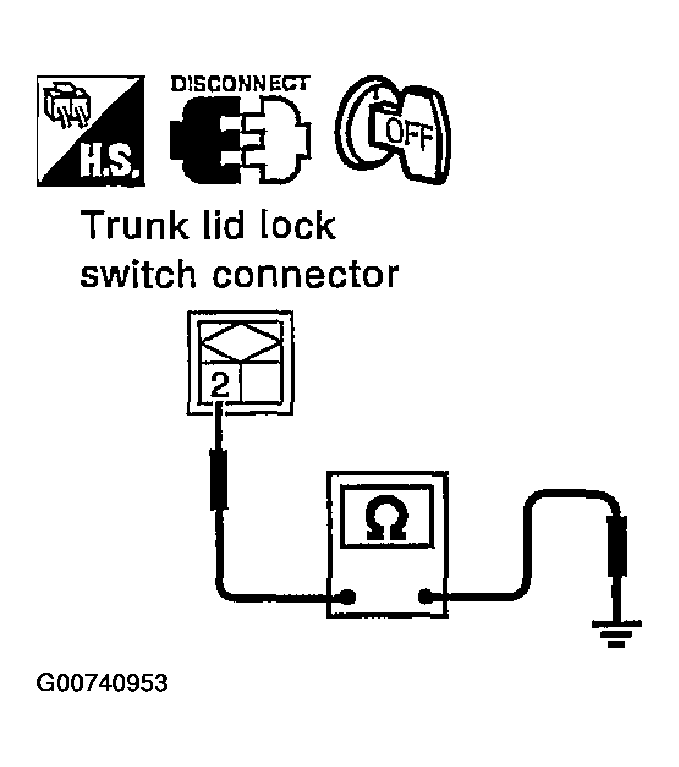

Fig 1: Checking Continuity Between Trunk Lid Lock Switch B74 (Without Auto Trunk) Or B312 (With Auto Trunk) Terminal 2 And Ground
G00740953Courtesy of NISSAN MOTOR CO., U.S.A.
