4. Trunk Lid Lock Switch Check

Check continuity between trunk lid lock switch terminals 1 and 2.

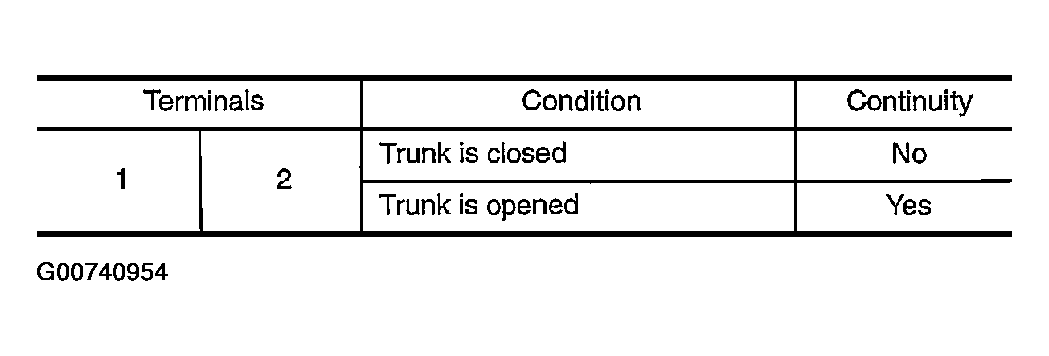

Fig 1: Check continuity between trunk lid lock switch terminals 1 and 2 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

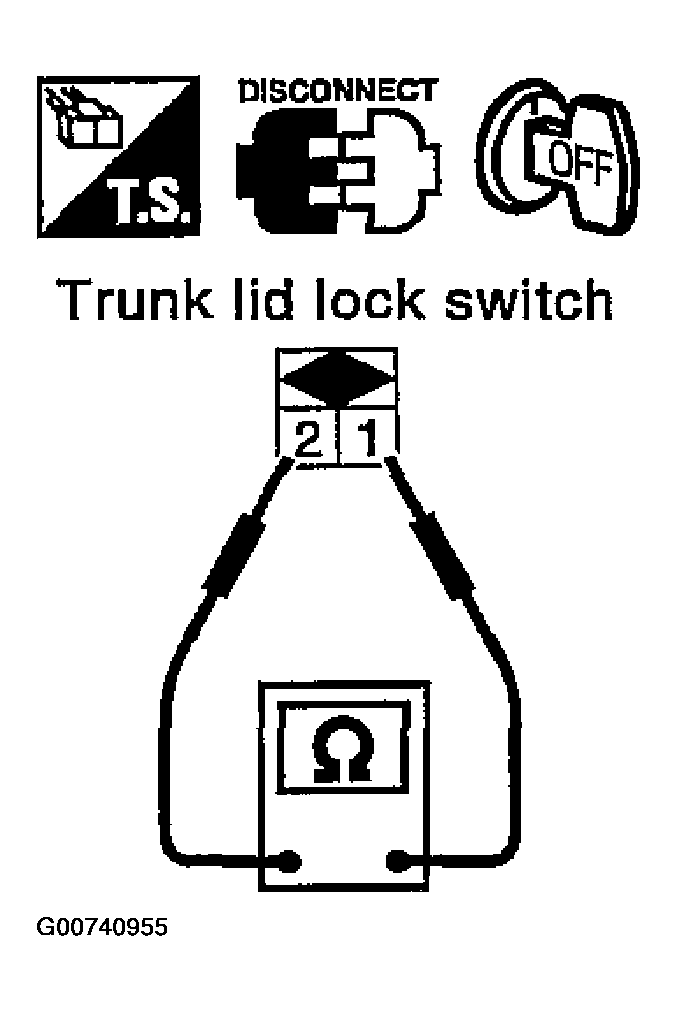

Fig 2: Check continuity between trunk lid lock switch terminals 1 and 2 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace trunk closure control unit.
2. NG : Replace trunk lid lock switch.
