Removal And Installation Of Trunk Closure Control Unit: Removal

  1. Remove trunk rear finisher.
  2. Remove the mounting bolts, and trunk closure control unit bracket.

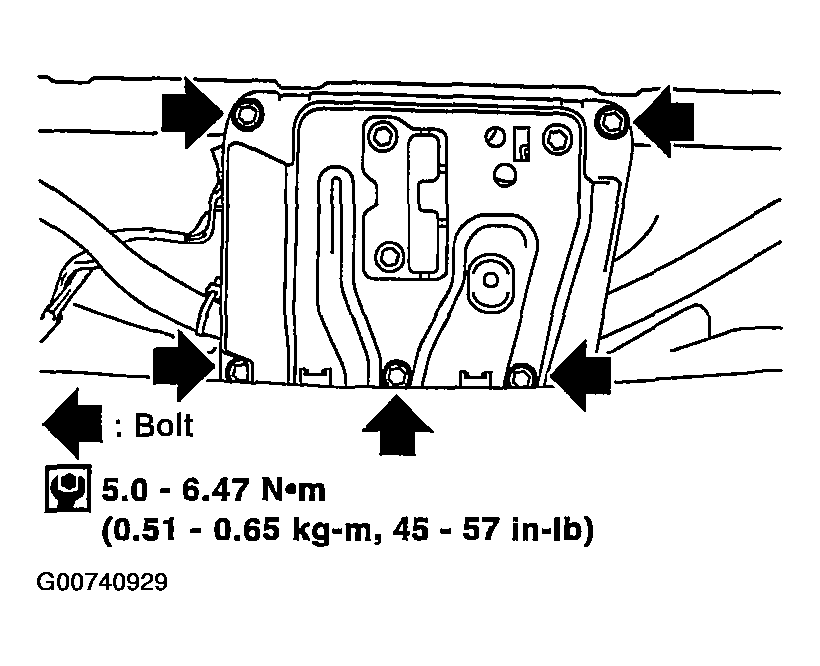

    Fig 1: Removing & Installing Trunk Closure Control Unit Bracket
    G00740929Courtesy of NISSAN MOTOR CO., U.S.A.
  3. After removing trunk closure control unit bracket together, remove the harness connector, remove the mounting bolts, and remove the trunk closure control unit.
    CAUTION:
    • After installing, check operation.
    • After installing, check for proper fit and alignment. .
