ABS Warning Lamp

Touch "ON" and "OFF" on the screen. Check that ABS warning lamp operates as shown in Fig 1.

Fig 1: Displaying ABS Warning Lamp Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

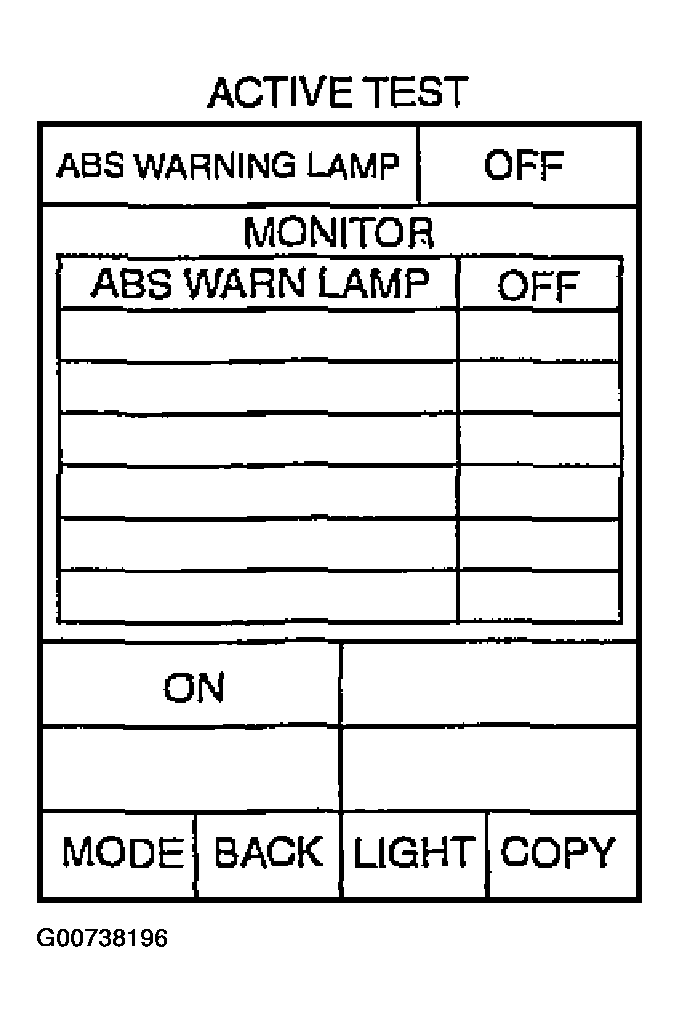

Fig 2: Displaying ABS WARN LAMP Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
