Operation Procedure

NOTE:
  • Do not perform active test while driving vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect CONSULT-II and CONSULT-II CONVERTER data link connector and start engine.
  2. Touch "START" on display.
  3. Touch "VDC" and "ACTIVE TEST".

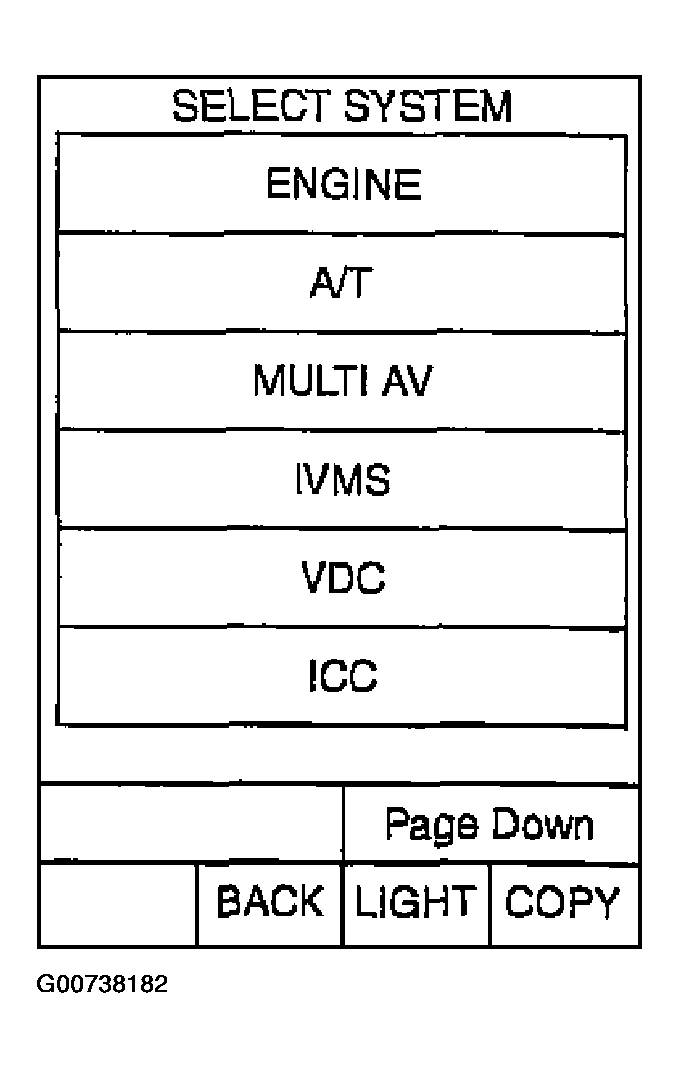

    Fig 1: Selecting "VDC" On SELECT SYSTEM Screen
    G00738182Courtesy of NISSAN MOTOR CO., U.S.A.

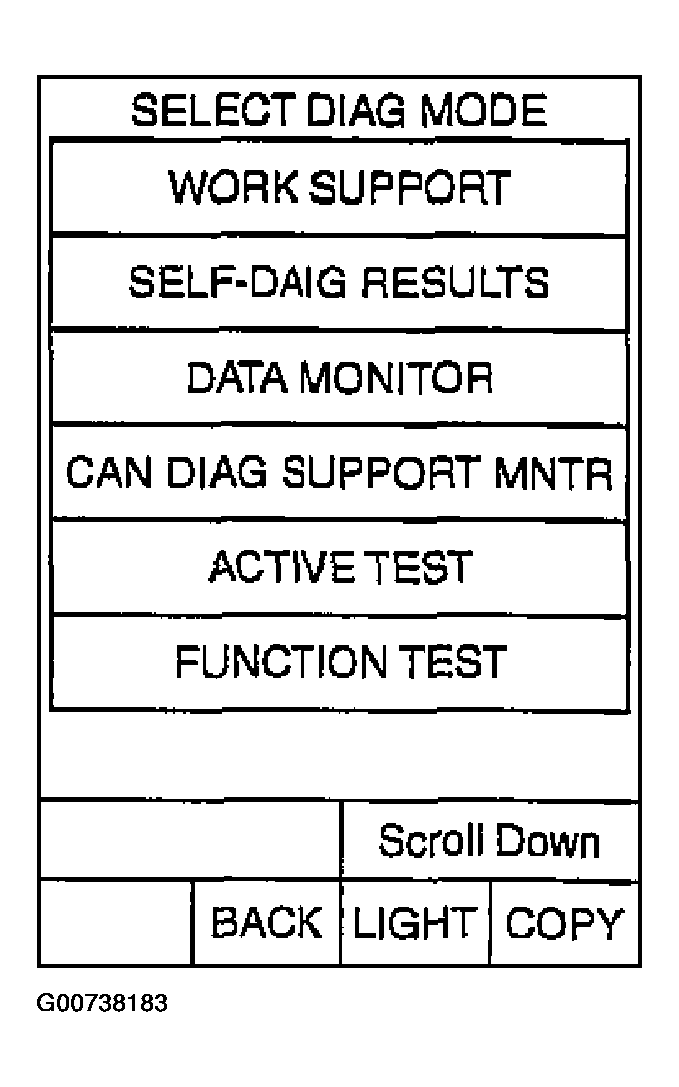

    Fig 2: Selecting "ACTIVE TEST" On SELECT DIAG MODE Screen
    G00738183Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.

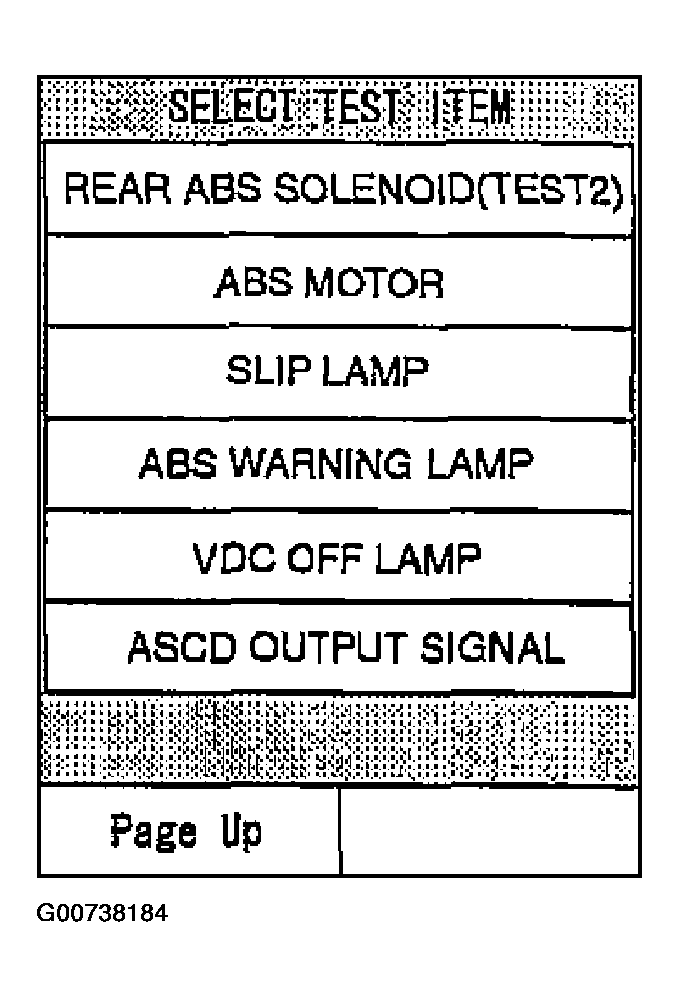

    Fig 3: Selecting Item On SELECT TEST ITEM Screen
    G00738184Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.

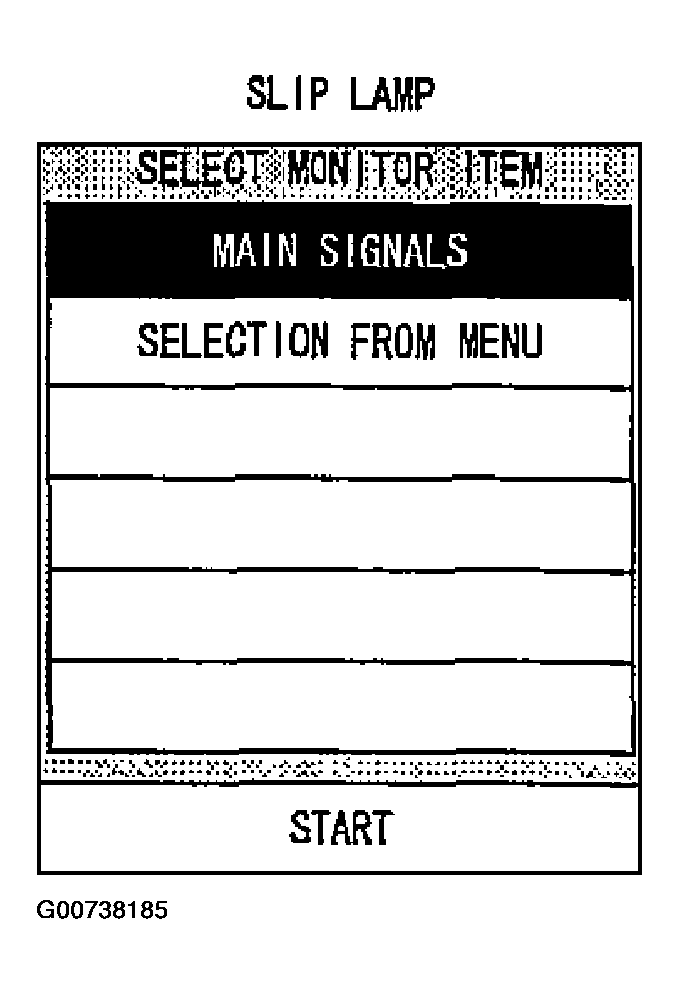

    Fig 4: Selecting "START" When MAIN SIGNALS Line Is Inverted
    G00738185Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Active test screen is displayed.

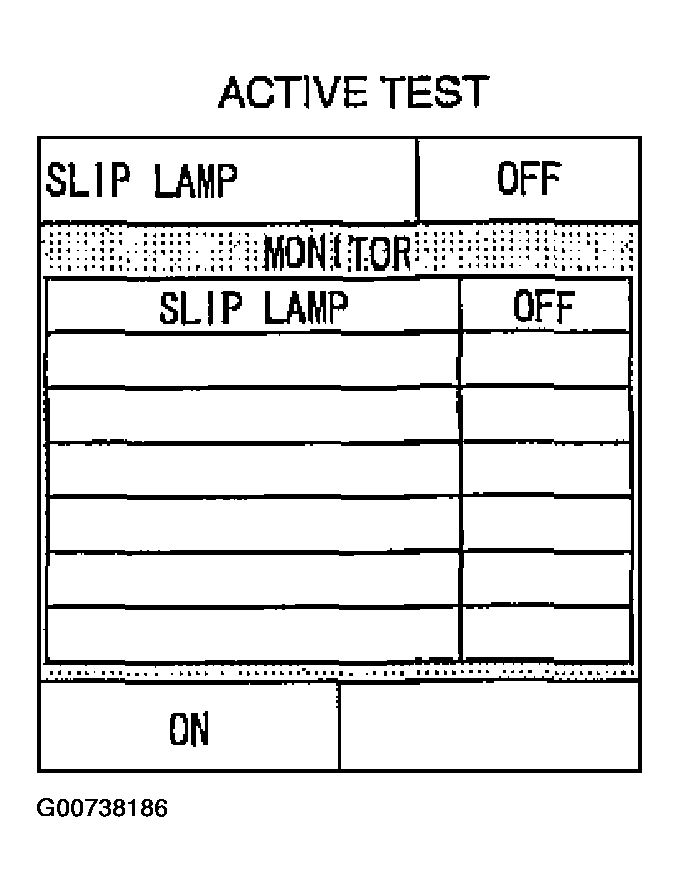

    Fig 5: Displaying ACTIVE TEST Screen
    G00738186Courtesy of NISSAN MOTOR CO., U.S.A.
