VDC Relay Box: Notes

Disconnect VDC relay box connector. Check continuity, resistance value, and insulation between any pair of terminals in VDC relay box.

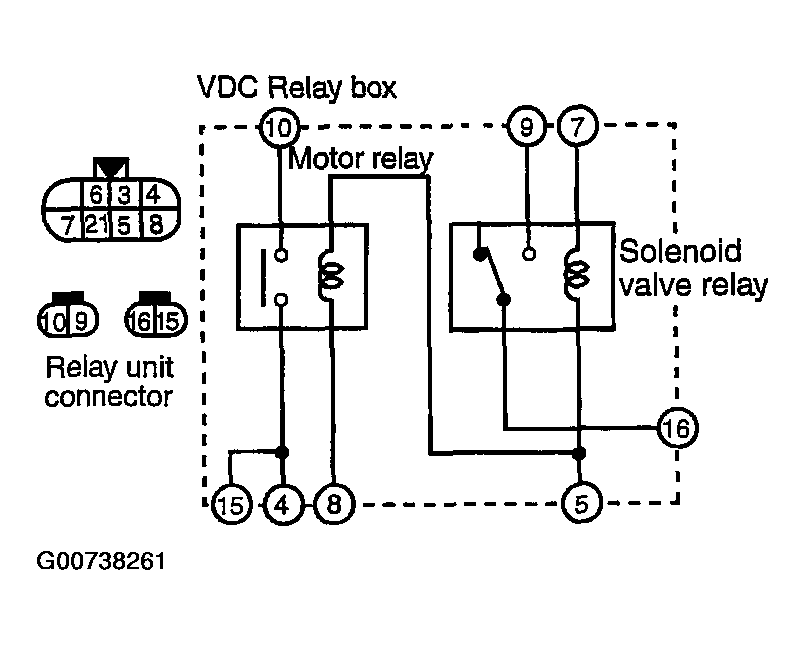

Fig 1: Displaying VDC Relay Box Circuits & Components

Courtesy of NISSAN MOTOR CO., U.S.A.
