Inspection: 2 Engine System

Check self-diagnosis results.

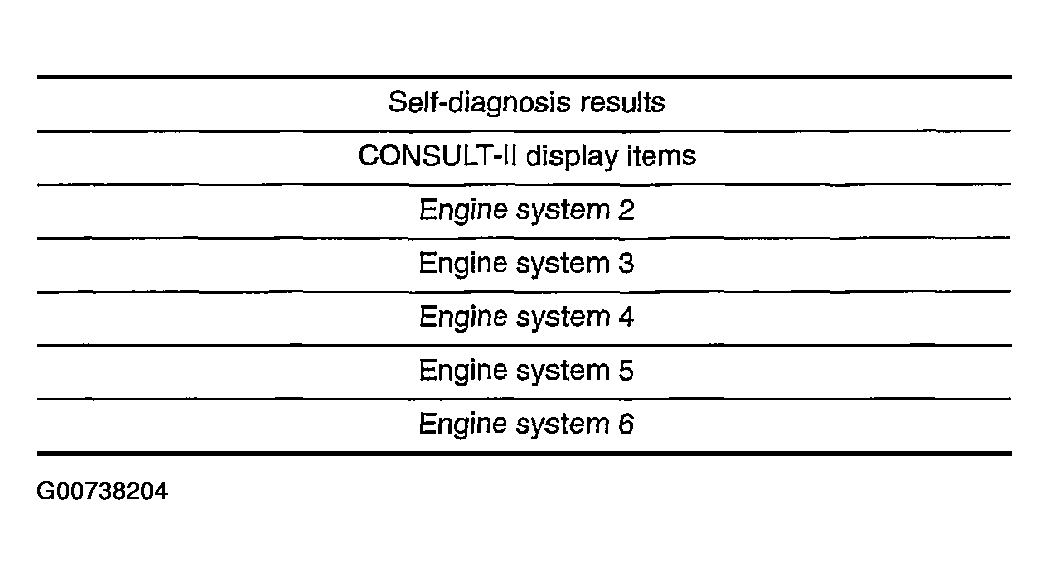

Fig 1: Displaying Self-Diagnosis Results

Courtesy of NISSAN MOTOR CO., U.S.A.

Do self-diagnosis results indicate anything other than the above?

1. YES: Perform repair or replacement for the item indicated.
2. NO: GO TO  2.

1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
2. Perform VDC/TCS/ABS control unit self-diagnosis again.

OK or NG

1. OK: Inspection is completed.
2. NG: Repair or replace items indicated. Then perform self-diagnosis again.
