Removal And Installation: Notes

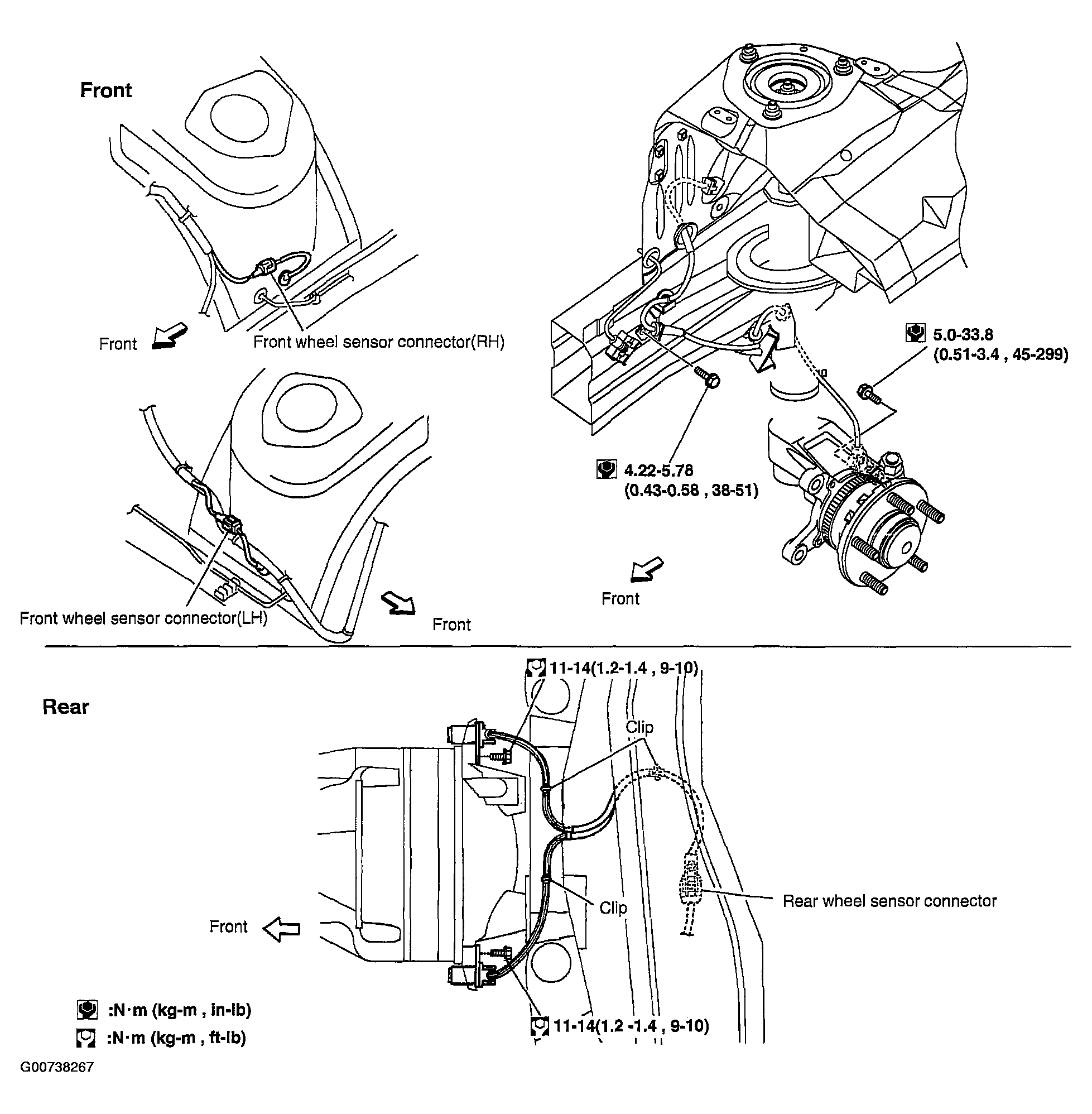

Fig 1: Displaying Removal & Installation Of Wheel Sensors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
