Combination Meter/Without ICC System Check

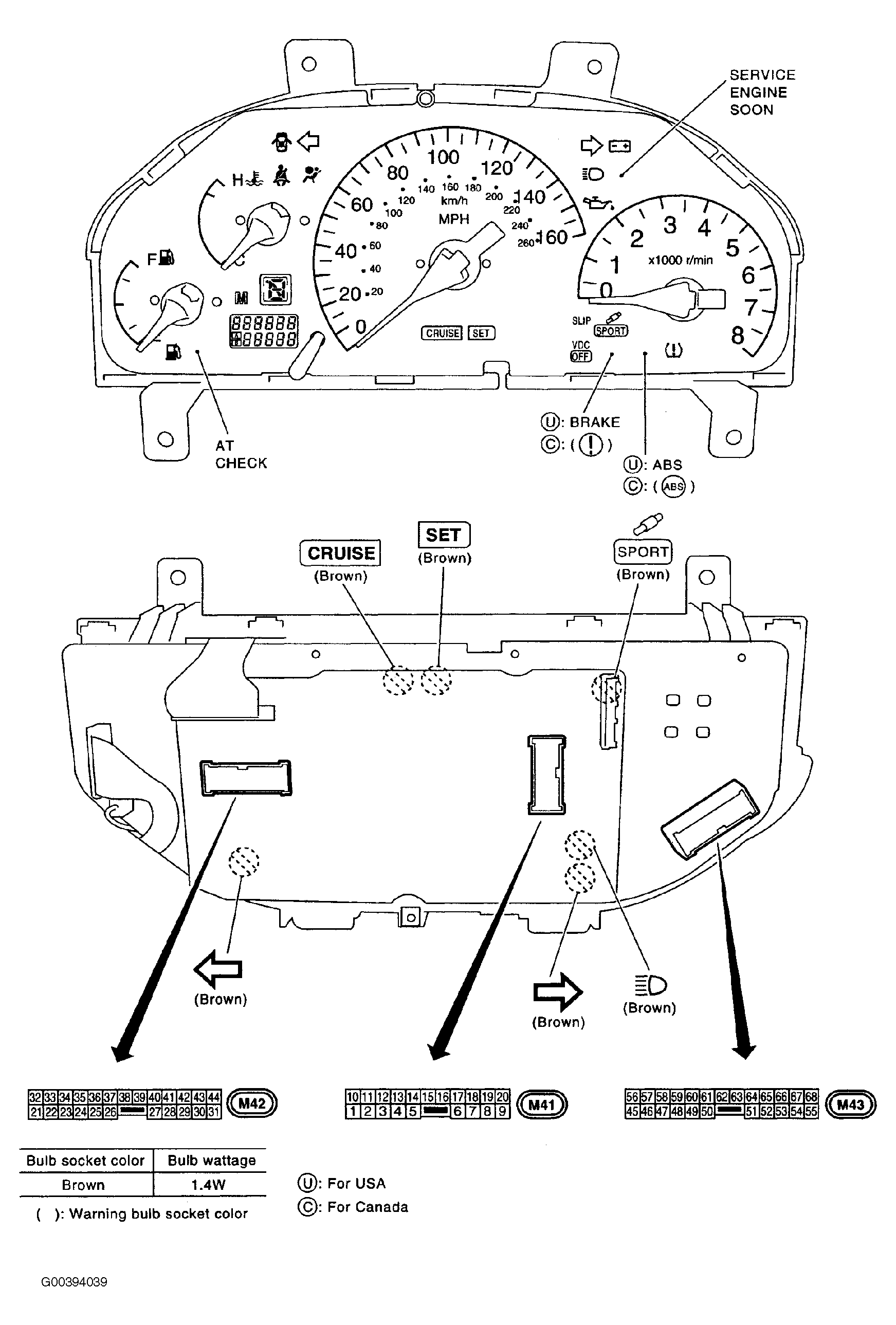

Fig 1: Combination Meter/Without ICC System Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
