Check Fuel Level Sensor Unit

For removal, refer to FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY .
Check resistance between fuel level sensor unit connector terminals 5 and 6.

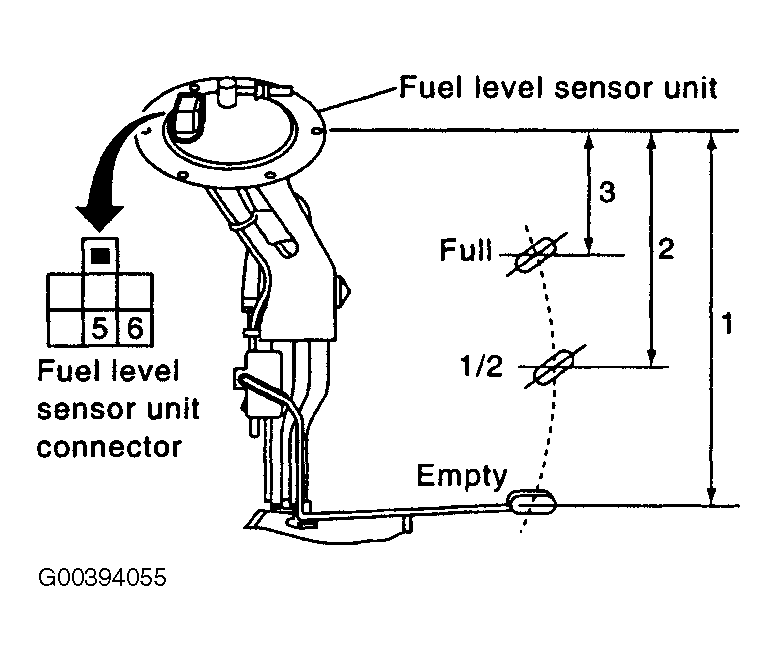

Fig 1: Checking Fuel Level Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

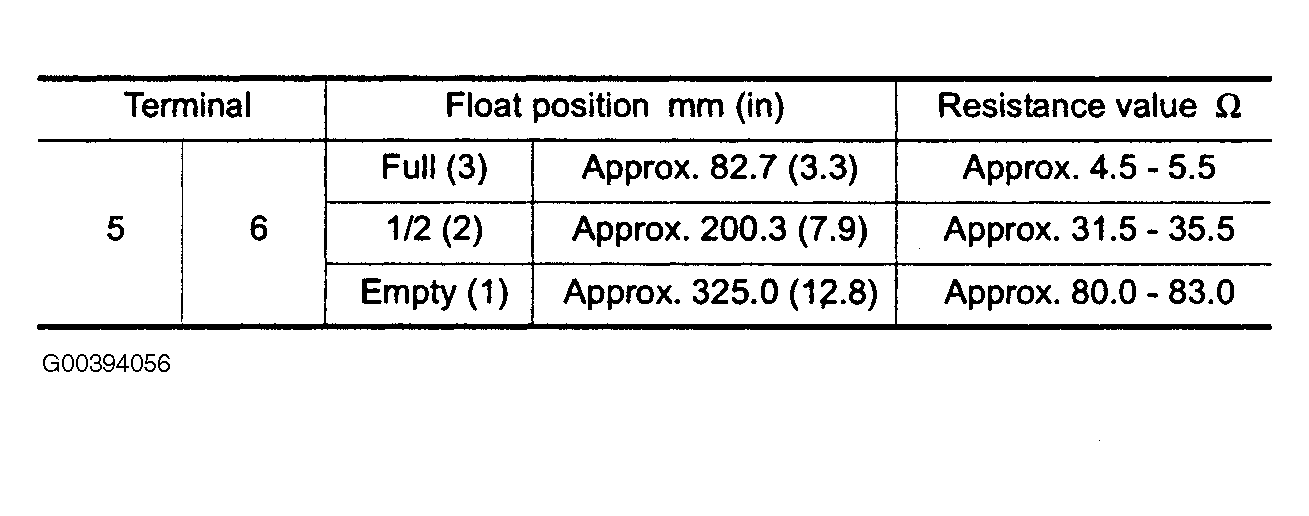

Fig 2: Fuel Level Sensor Terminal Inspection Table

Courtesy of NISSAN MOTOR CO., U.S.A.
