3. Check Fuel Level Sensor Open Circuit

1. Disconnect combination meter connector.
2. Check the following:
   • Continuity between combination meter harness connector M42 terminal 30 (R/L) and fuel level sensor unit harness connector B239 terminal 5 (R/L)

     Continuity should exist.

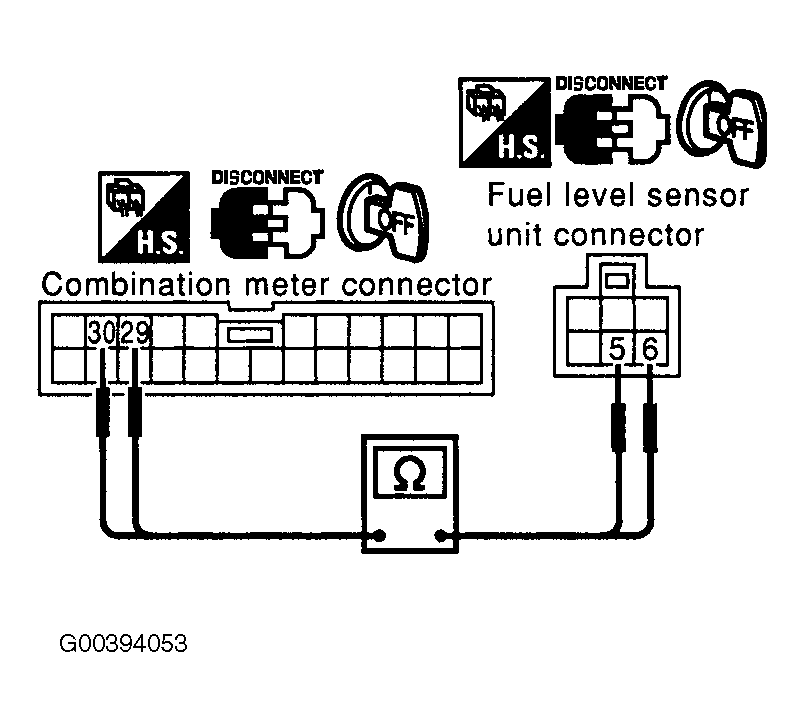

     Fig 1: Checking Fuel Level Sensor Circuit For Open Or Short

     Courtesy of NISSAN MOTOR CO., U.S.A.
   • Continuity between combination meter harness connector M42 terminal 29 (B/Y) and fuel level sensor unit harness connector B239 terminal 6 (B).

   Continuity should exist.

OK or NG

1. OK: GO TO 4  .
2. NG: Repair harness or connector.
