Terminals And Reference Value For Combination Meter

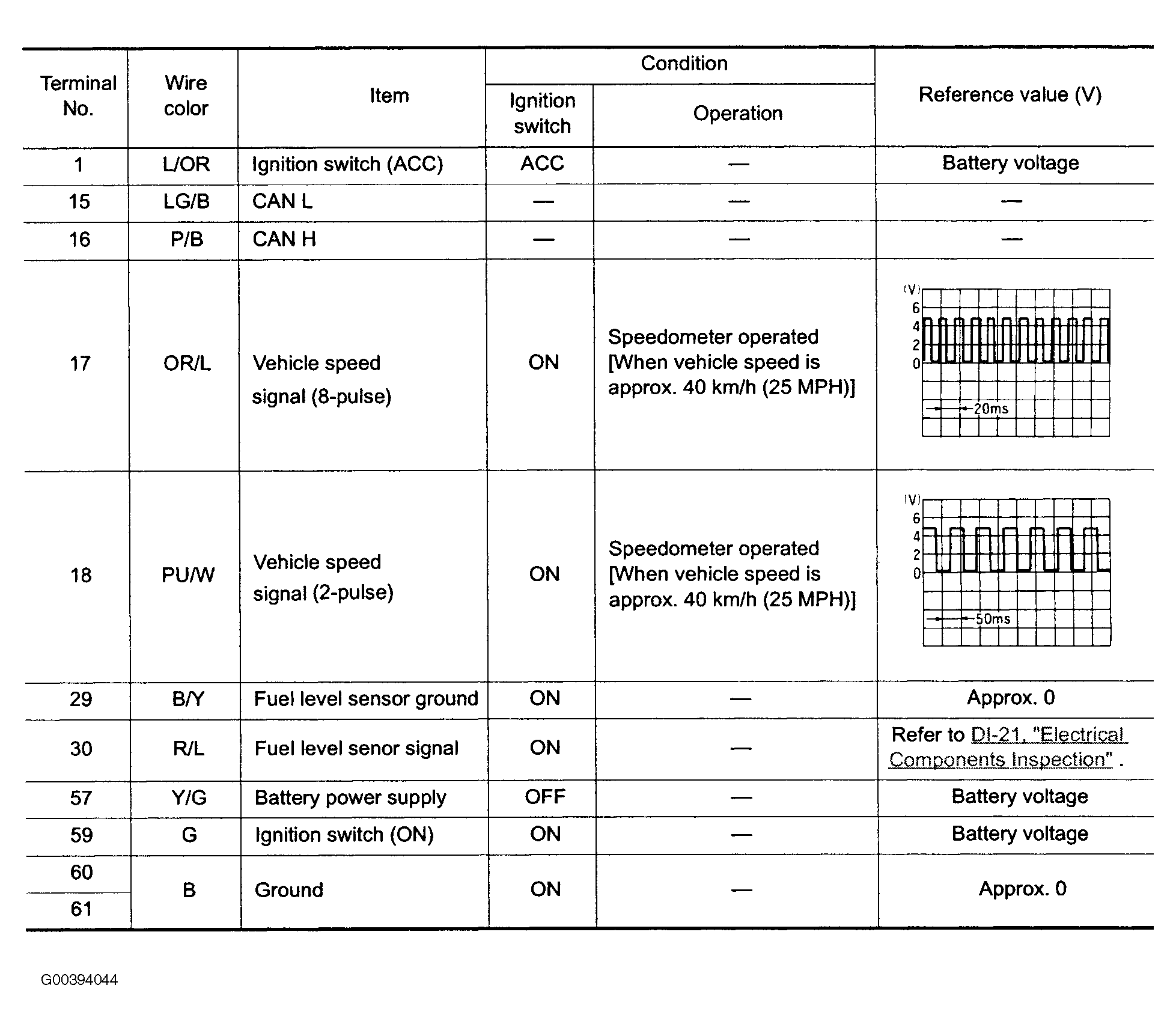

Fig 1: Terminals And Reference Values For Combination Meter
G00394044Courtesy of NISSAN MOTOR CO., U.S.A.
