Terminals & Reference Value For Rear View Camera Control Unit

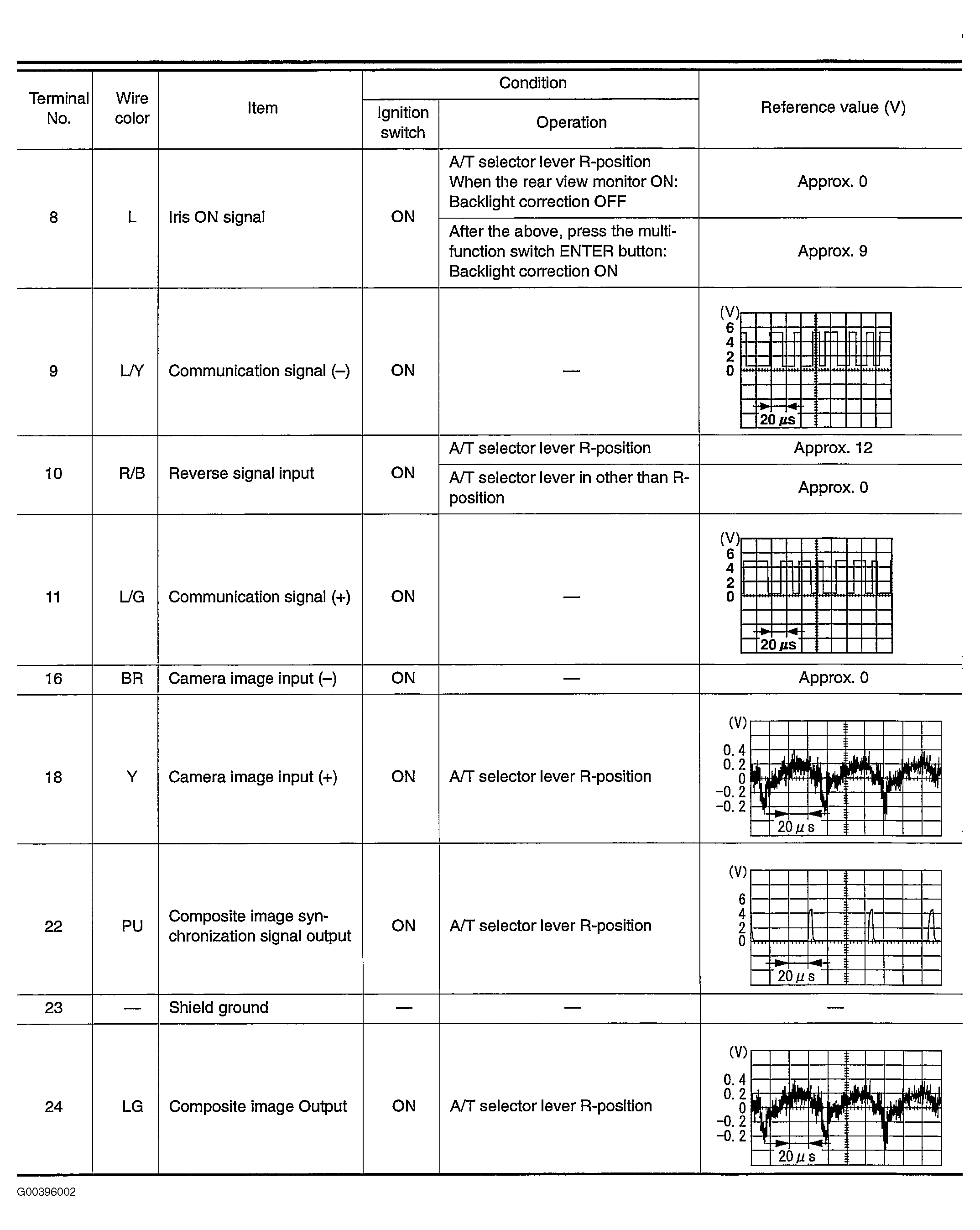

Fig 1: Terminals & Reference Value For Rear View Camera Control Unit (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

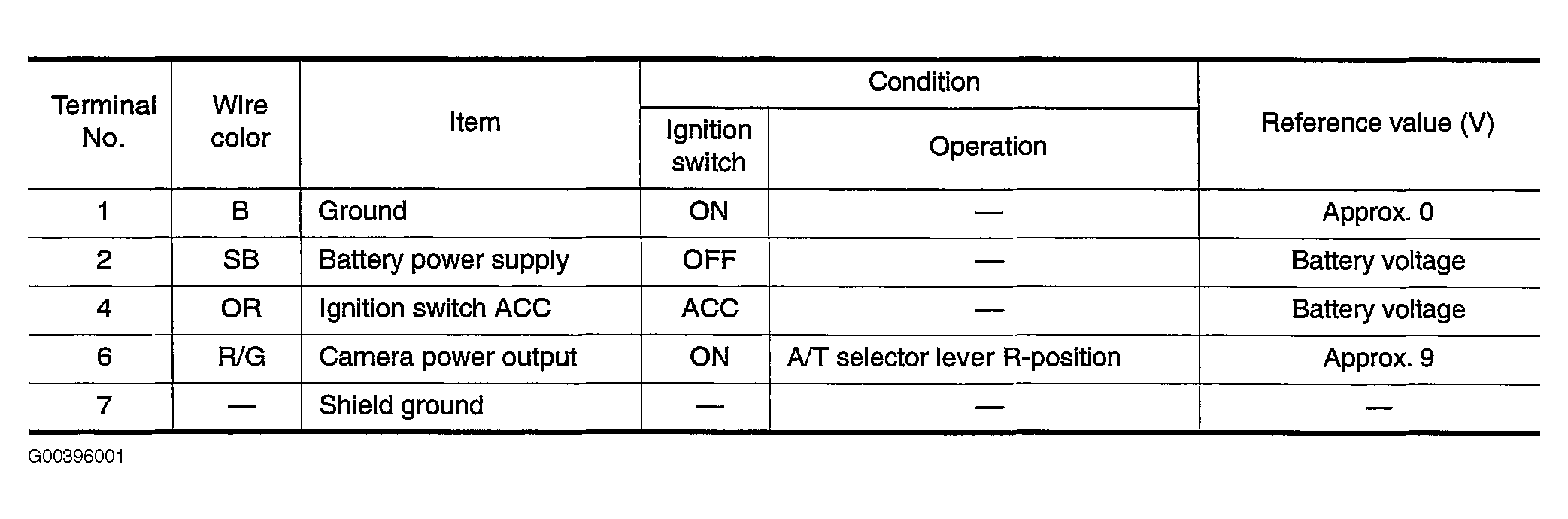

Fig 2: Terminals & Reference Value For Rear View Camera Control Unit (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
