Disassembly And Assembly For MULTIFUNCTION Switch: Disassembly

  1. Remove the screw (7).
  2. Remove the switches.

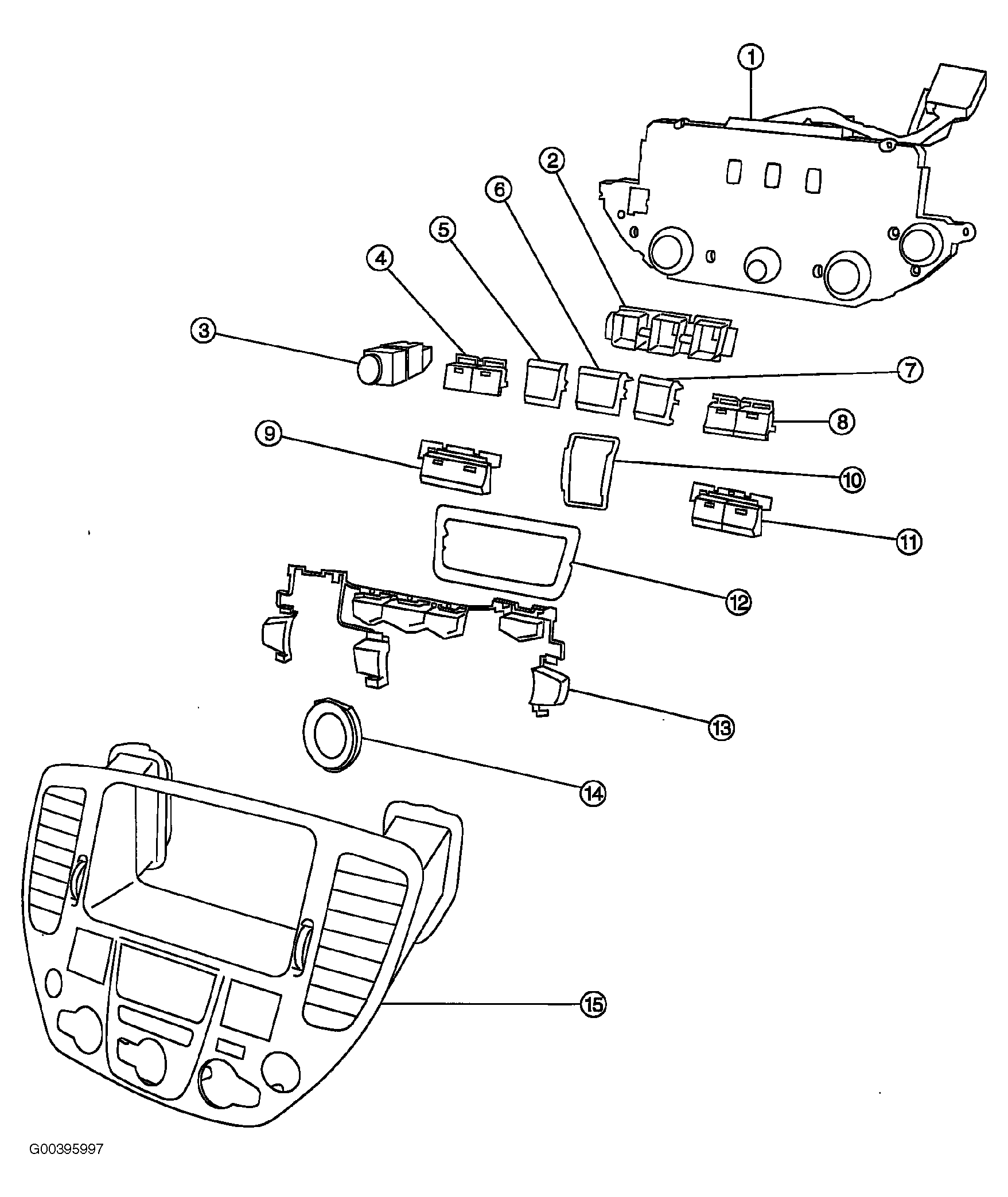

    3. Fig 1: Disassembly & Assembly For Multifunction Switch
    G00395997Courtesy of NISSAN MOTOR CO., U.S.A.
