Terminals And Reference Value For Av And NAVI Control Unit

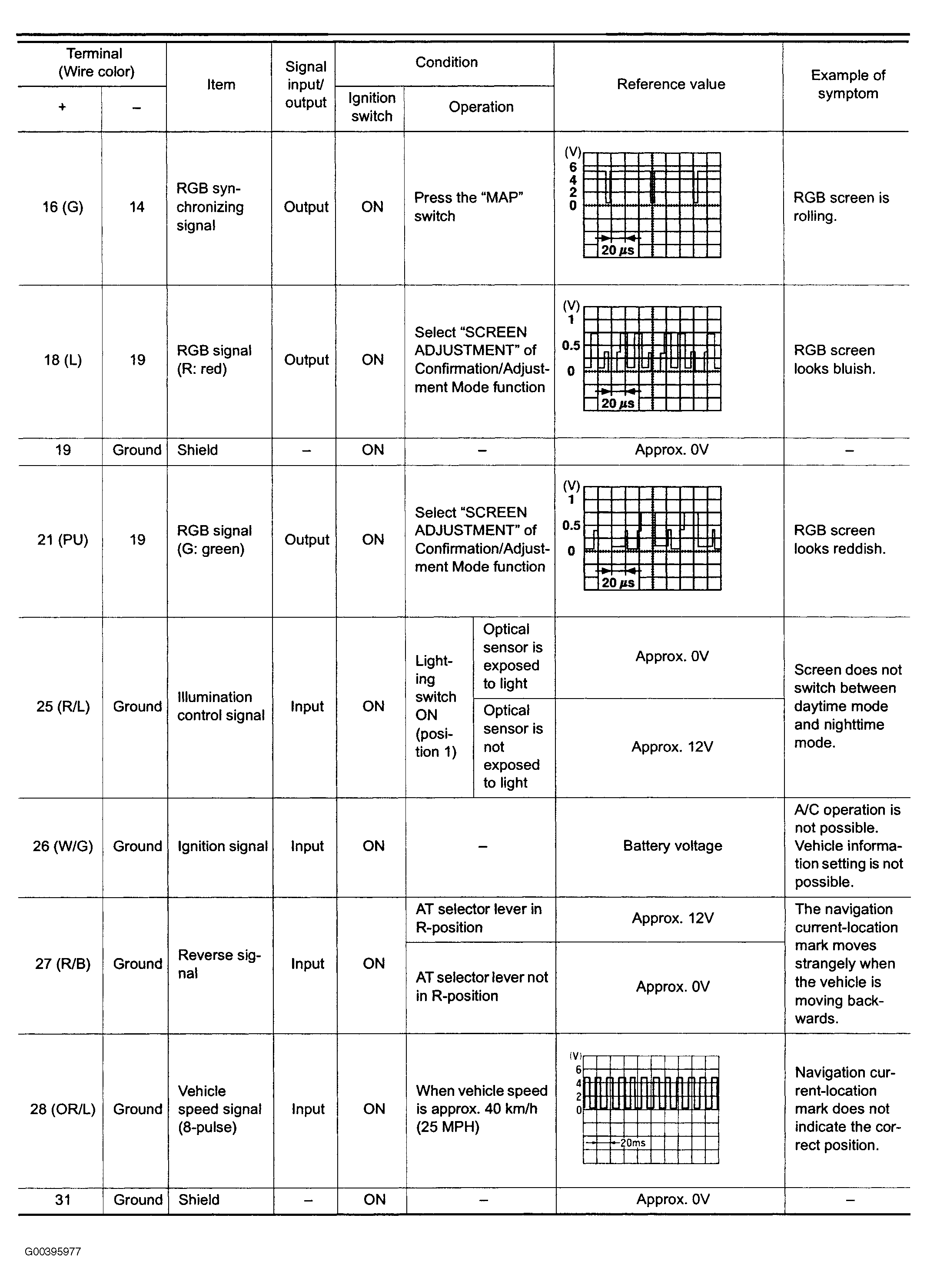

Fig 1: Terminals And Reference Value For AV And NAVI Control Unit (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

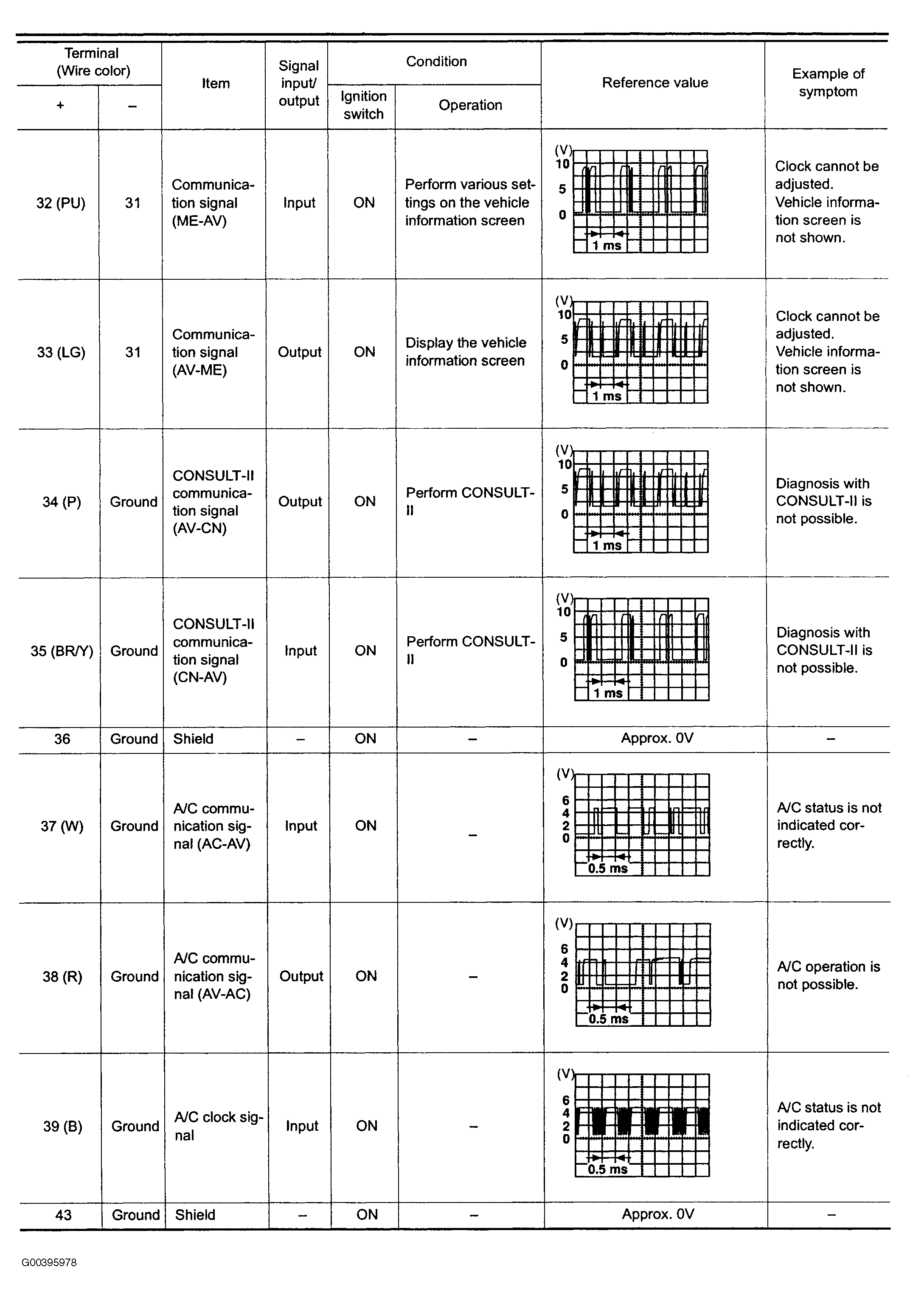

Fig 2: Terminals And Reference Value For AV And NAVI Control Unit (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

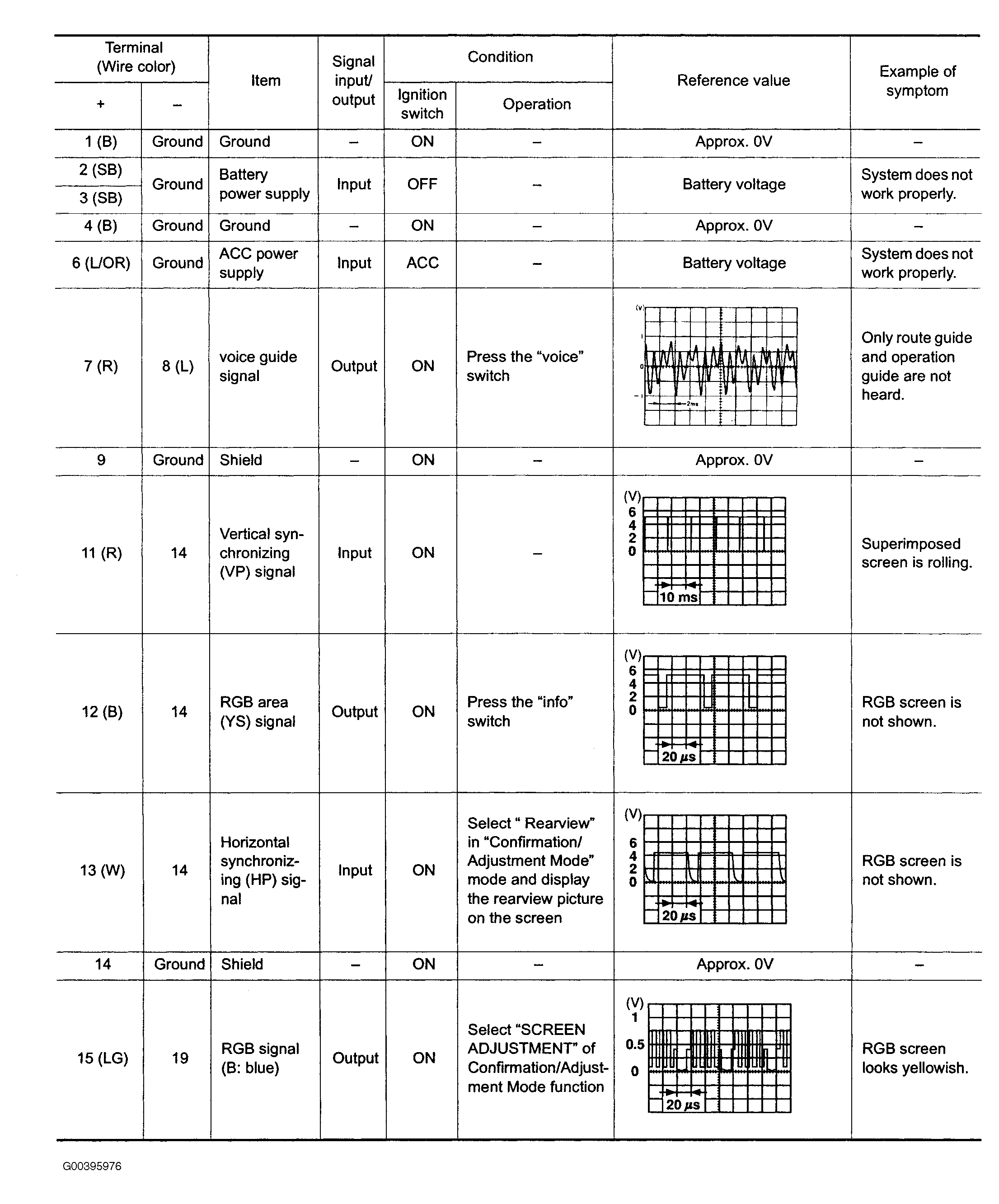

Fig 3: Terminals And Reference Value For AV And NAVI Control Unit (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

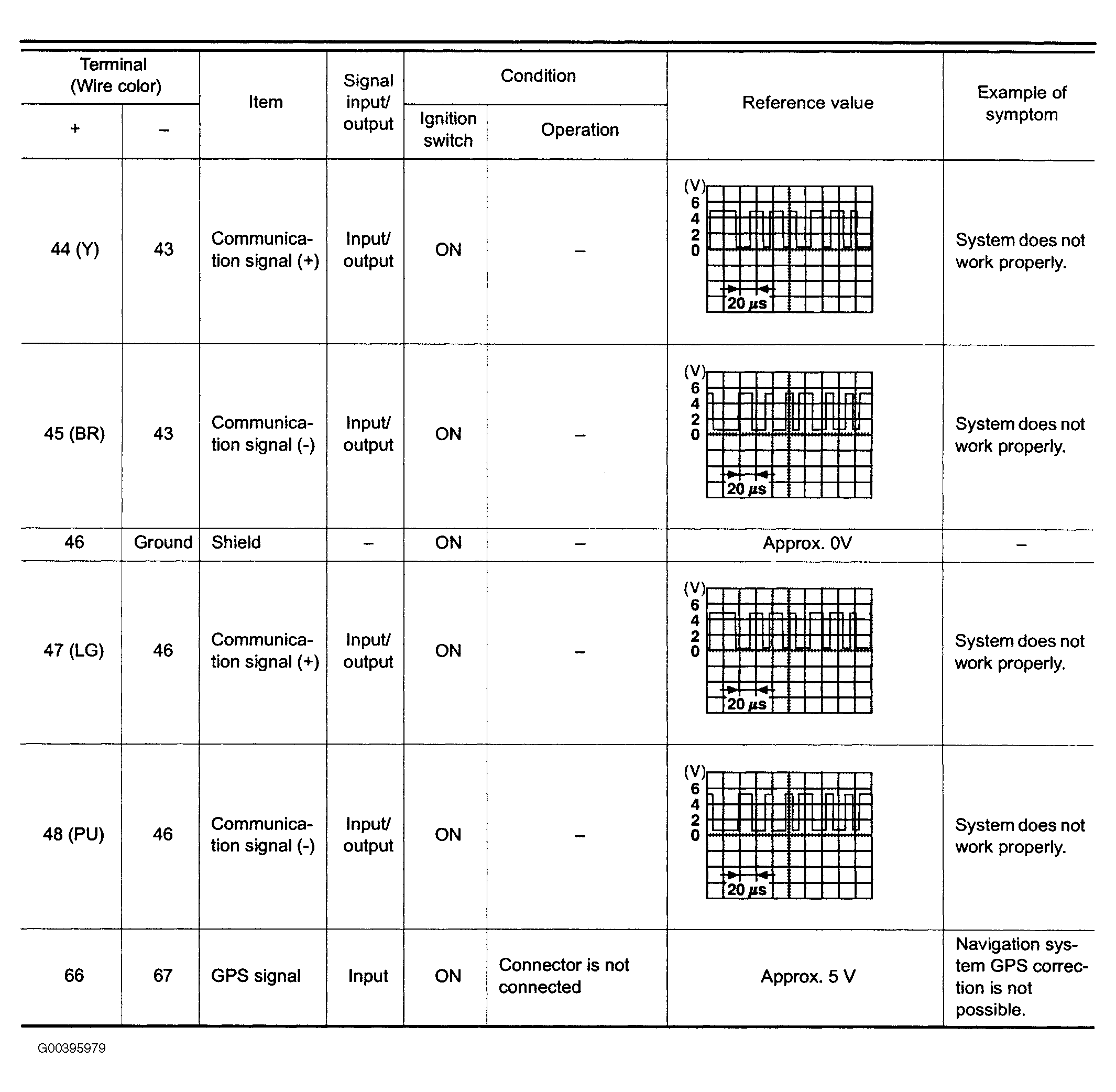

Fig 4: Terminals And Reference Value For AV And NAVI Control Unit (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
