Data Monitor

Displays status of the vehicle signal input to the AV control unit. (Refer to CONFIRMATION/ADJUSTMENT MODE for operation conditions for the connections to be indicated.)
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

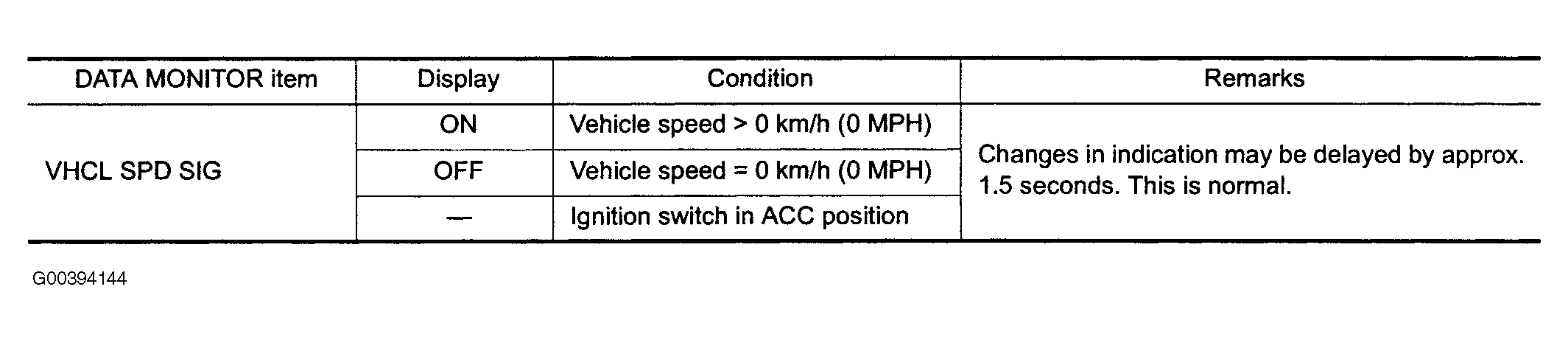

Fig 1: Data Monitor Item (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

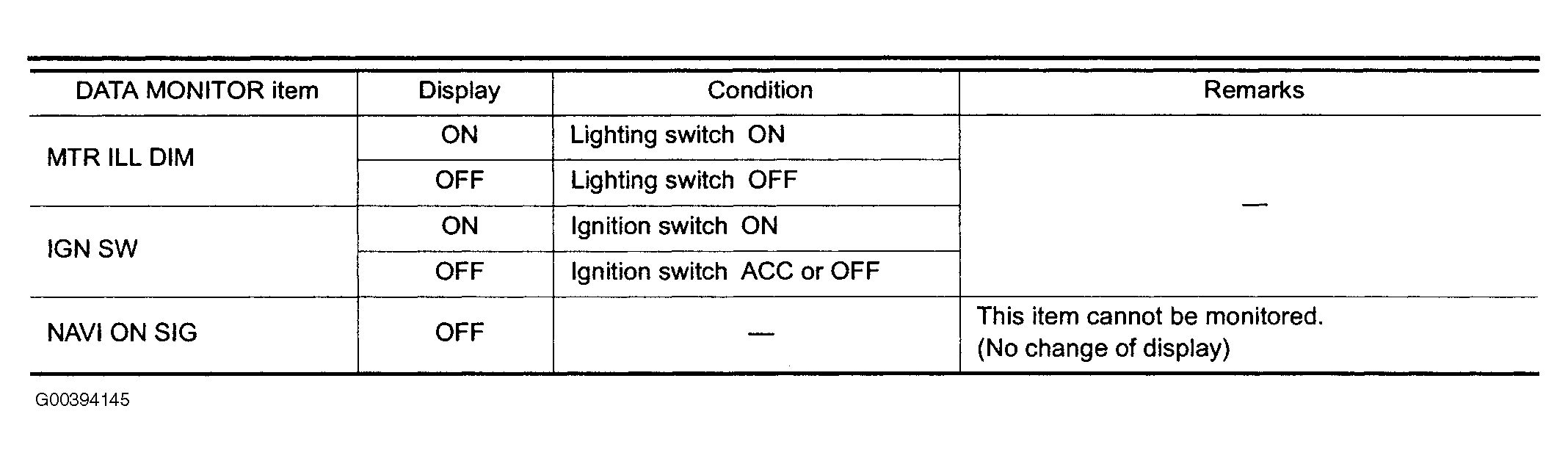

Fig 2: Data Monitor Item (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
