Disassembly And Assembly For MULTIFUNCTION Switch: Disassembly

  1. Remove the screws (7).
  2. Remove the switches.

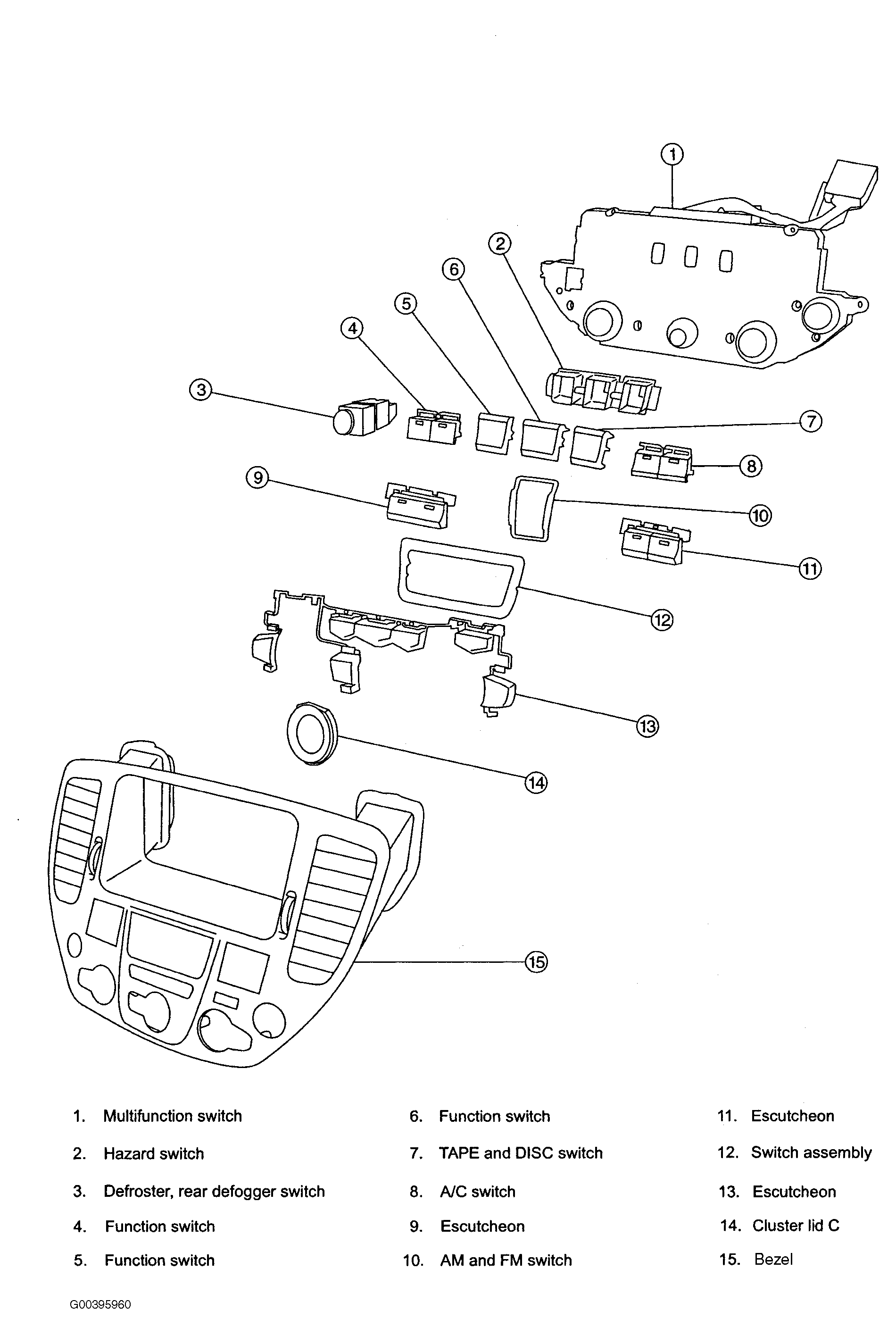

Fig 1: Disassembly & Assembly For Multifunction Switch
G00395960Courtesy of NISSAN MOTOR CO., U.S.A.
