Terminals And Reference Value For Av Control Unit

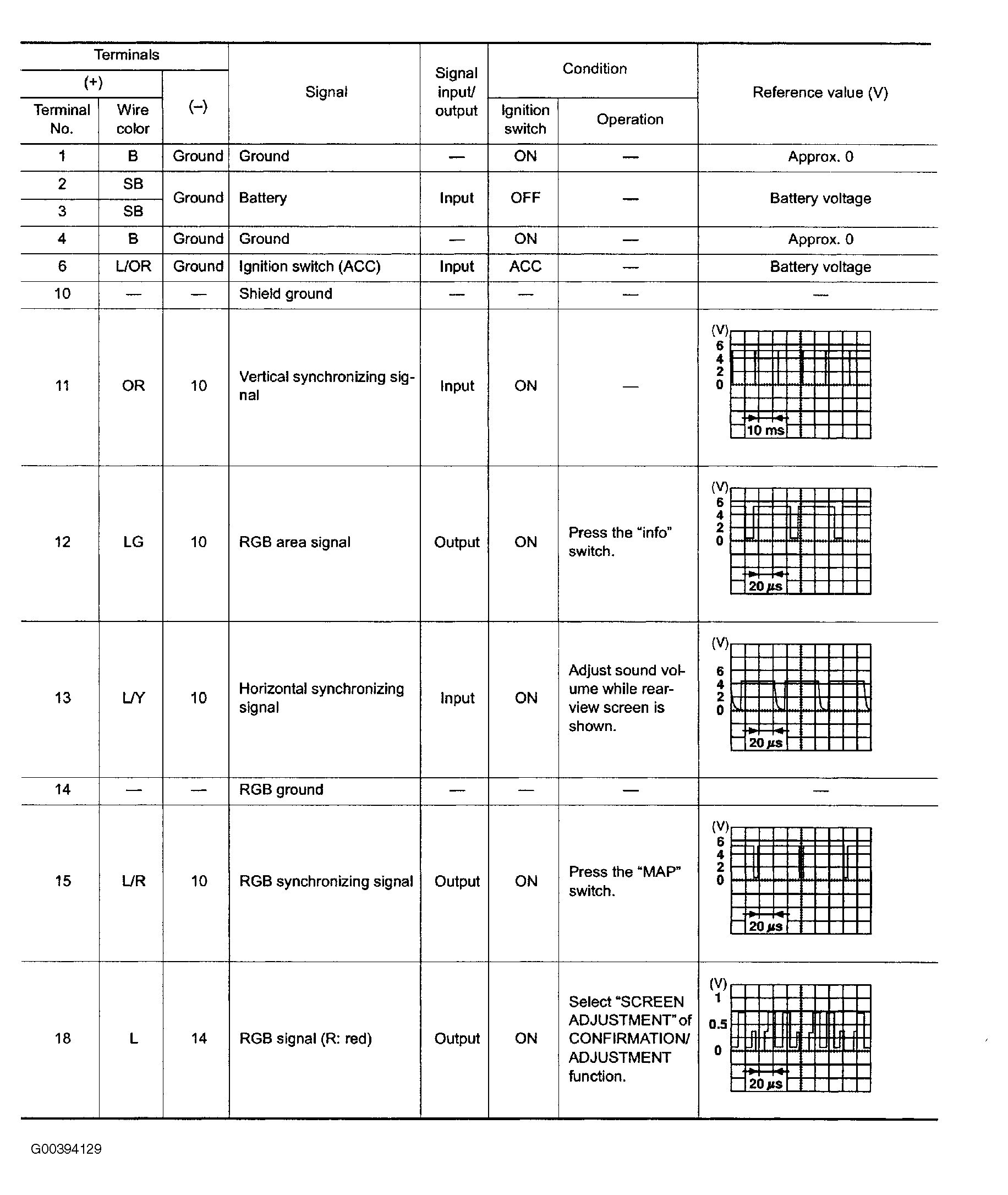

Fig 1: Terminals and Reference Value for AV Control Unit (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

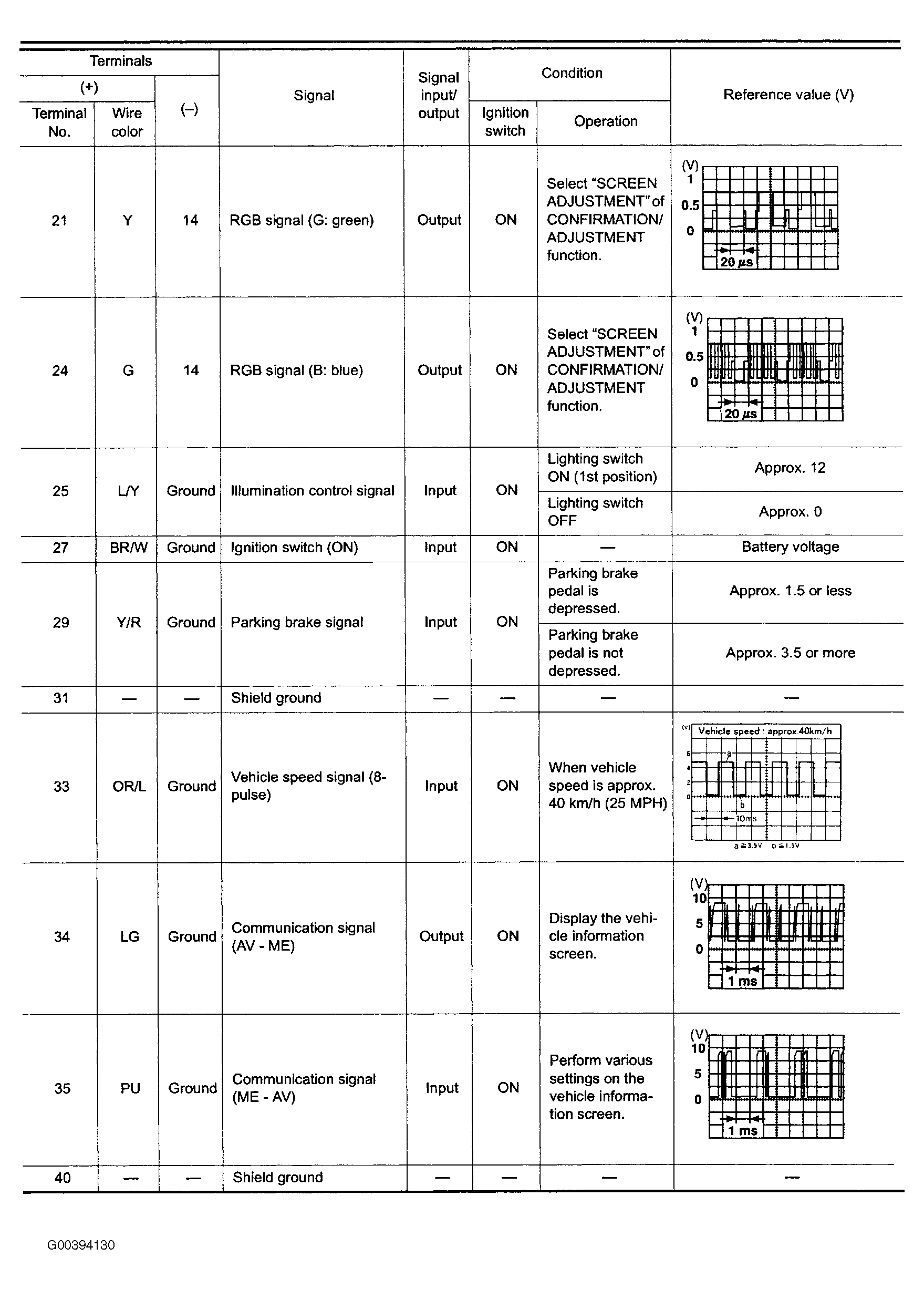

Fig 2: Terminals and Reference Value for AV Control Unit (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

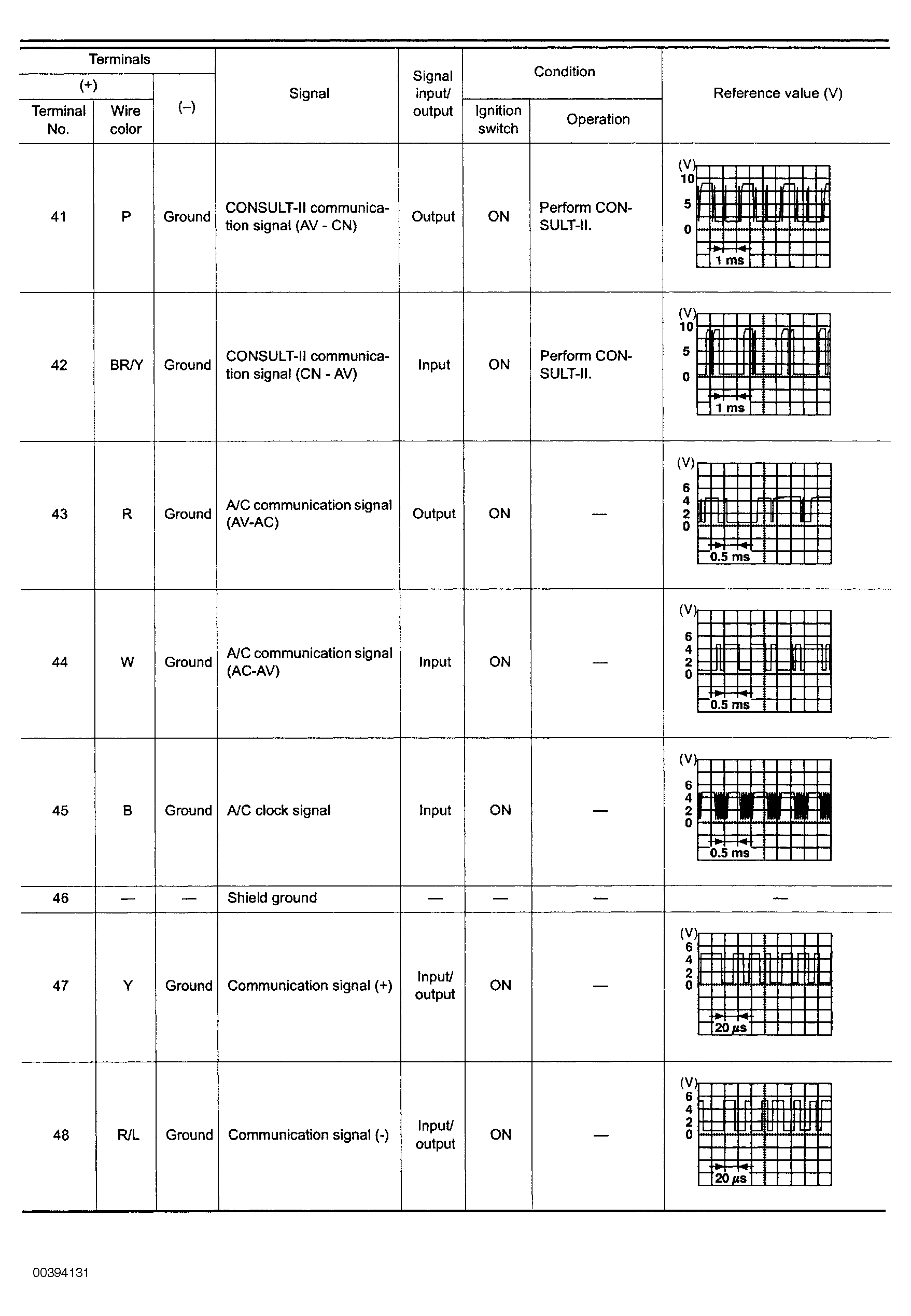

Fig 3: Terminals and Reference Value for AV Control Unit (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
