Terminals & Reference Values For Voice Activated Control Module

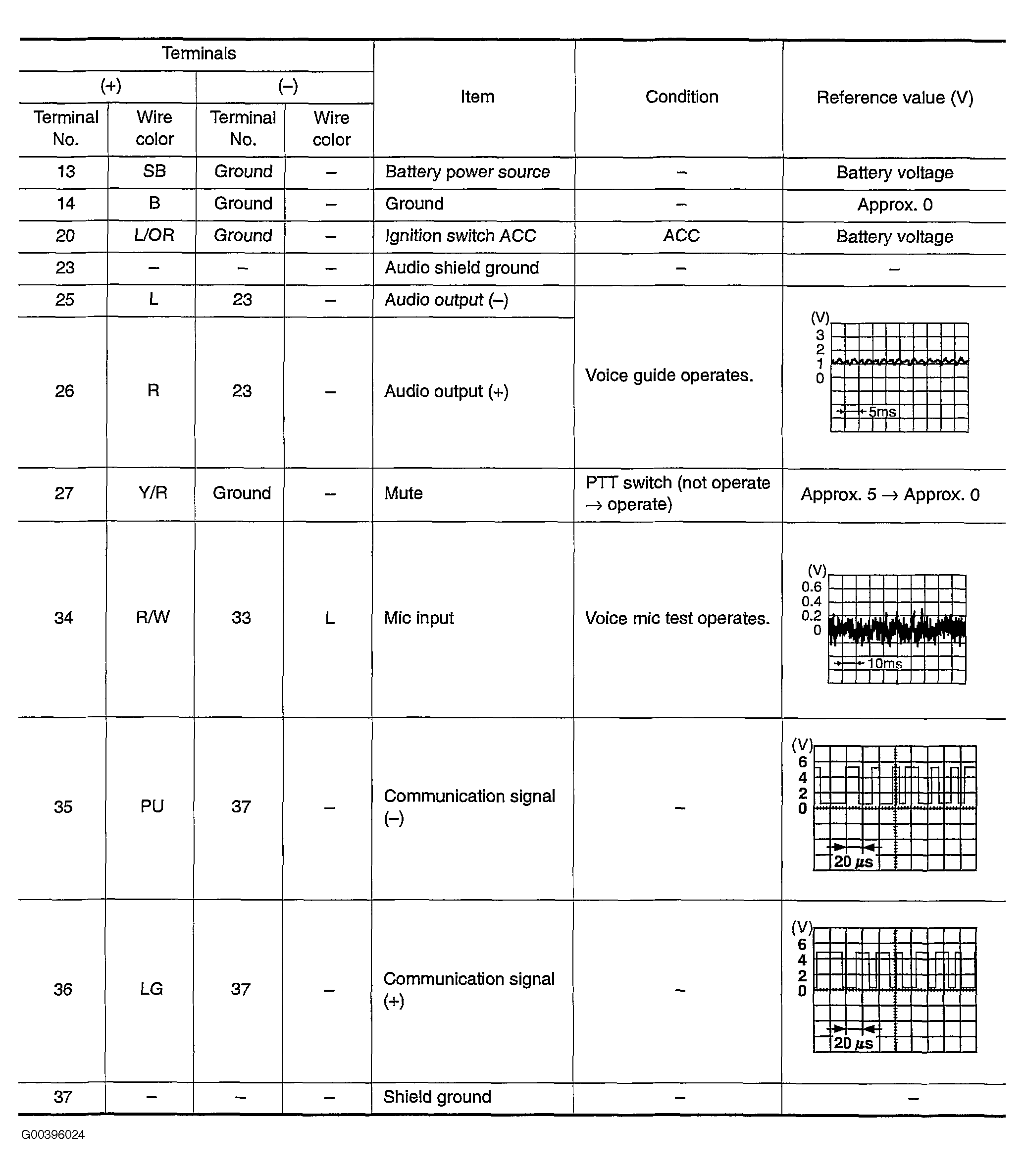

Fig 1: Terminals & Reference Values For Voice Activated Control Module
Courtesy of NISSAN MOTOR CO., U.S.A.
