Example of Basic Operational Errors

The system should respond correctly to all voice commands. Follow the solutions given in this guide for the appropriate error when any of the following symptom is encountered. Where the solutions are listed by number, try each solution in turn, starting with number one, until the symptom is resolved.

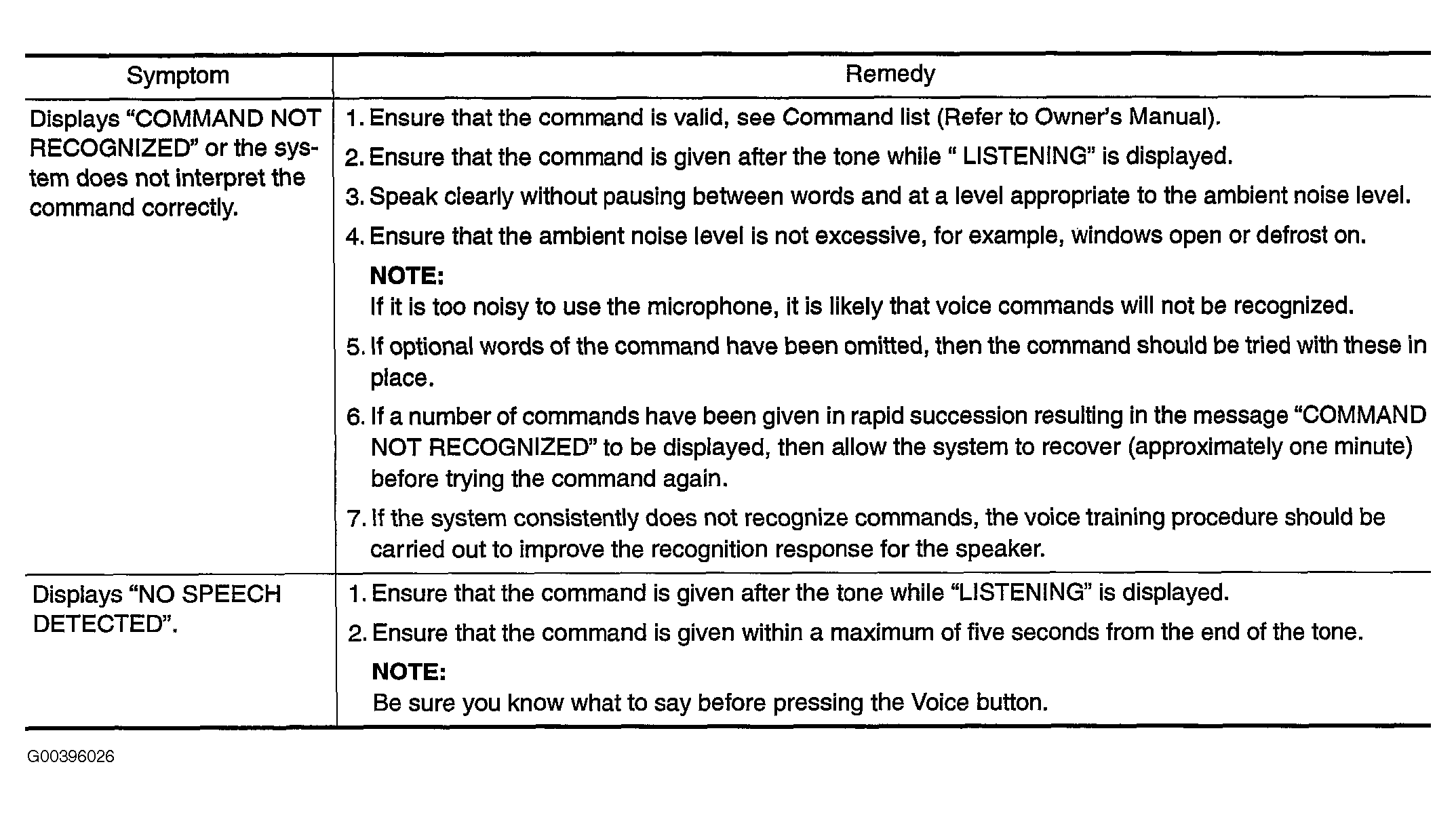

Fig 1: Example Of Basic Operational Errors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

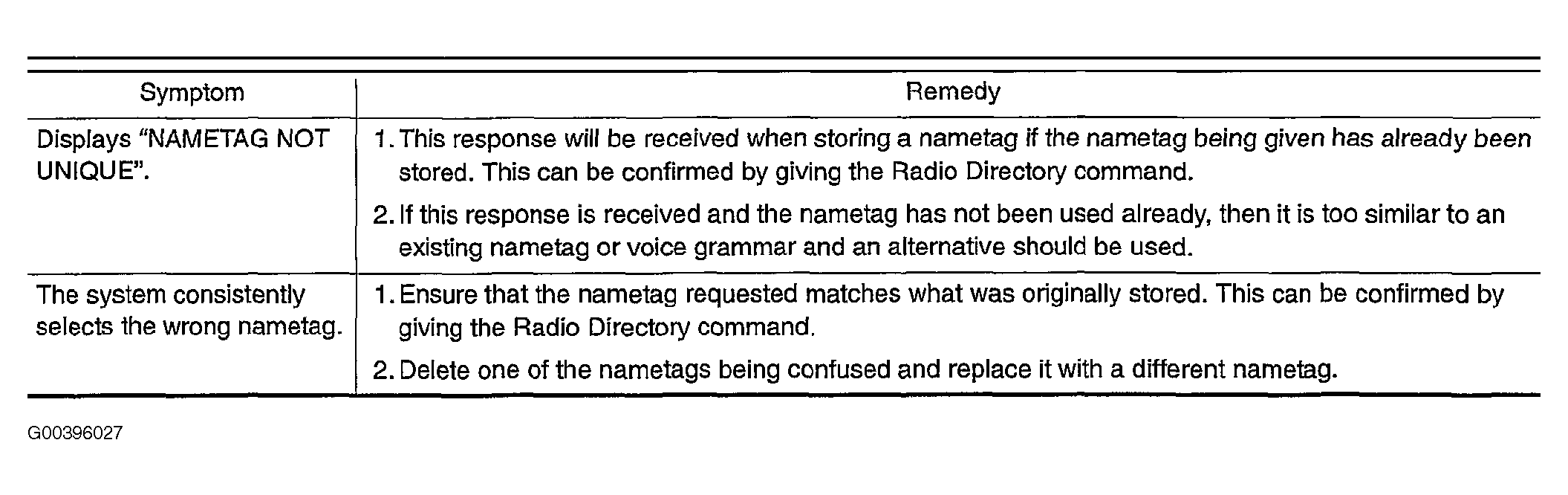

Fig 2: Example Of Basic Operational Errors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
