5. Check AV Communication Line

Disconnect voice activated control module connector and AV and NAVI control unit (with navigation system) connector or AV control unit (without navigation system) connector.
Check the following:
- With navigation system

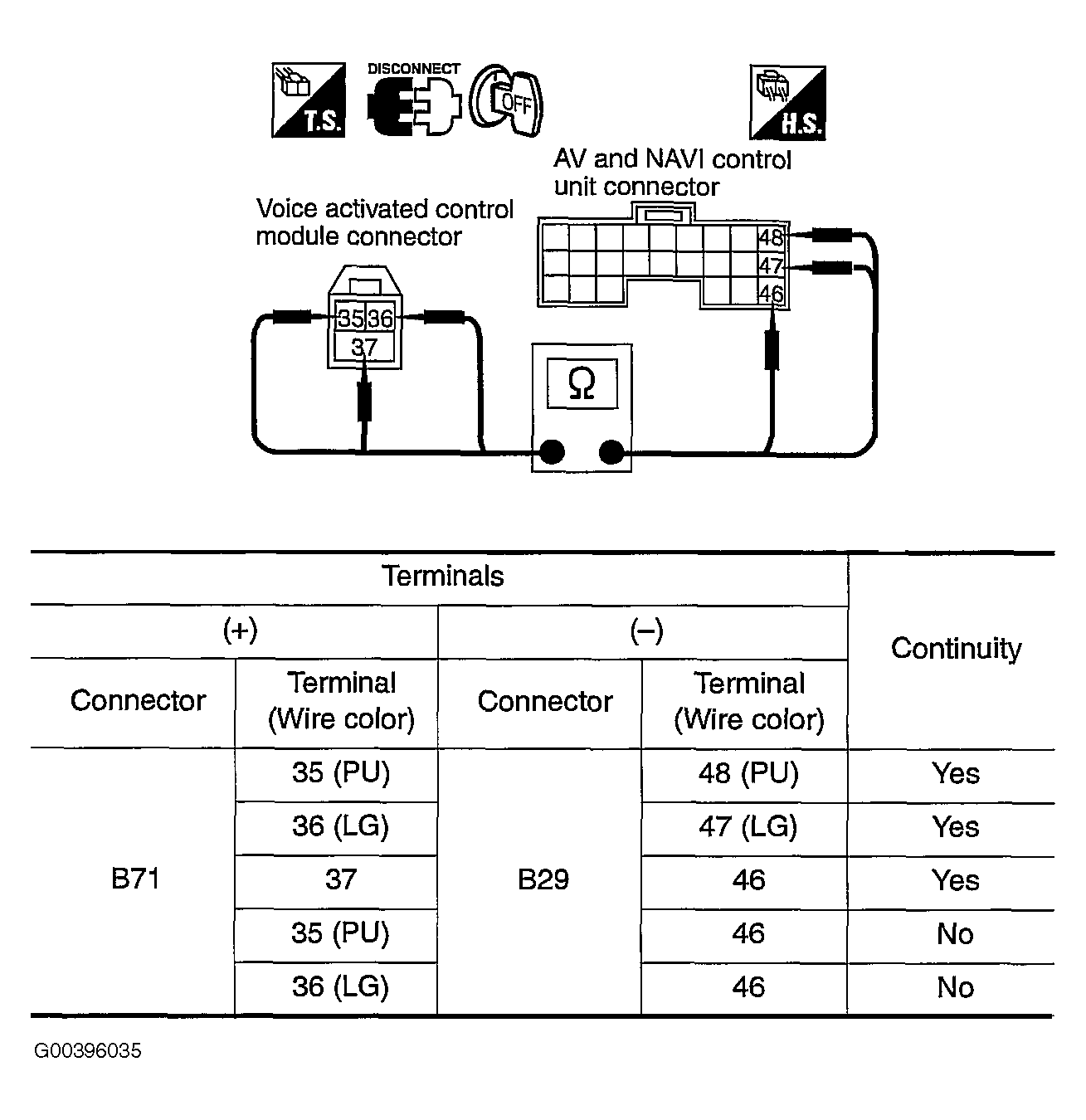

  Fig 1: Checking AV Communication Line (With Navigation)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Without navigation system

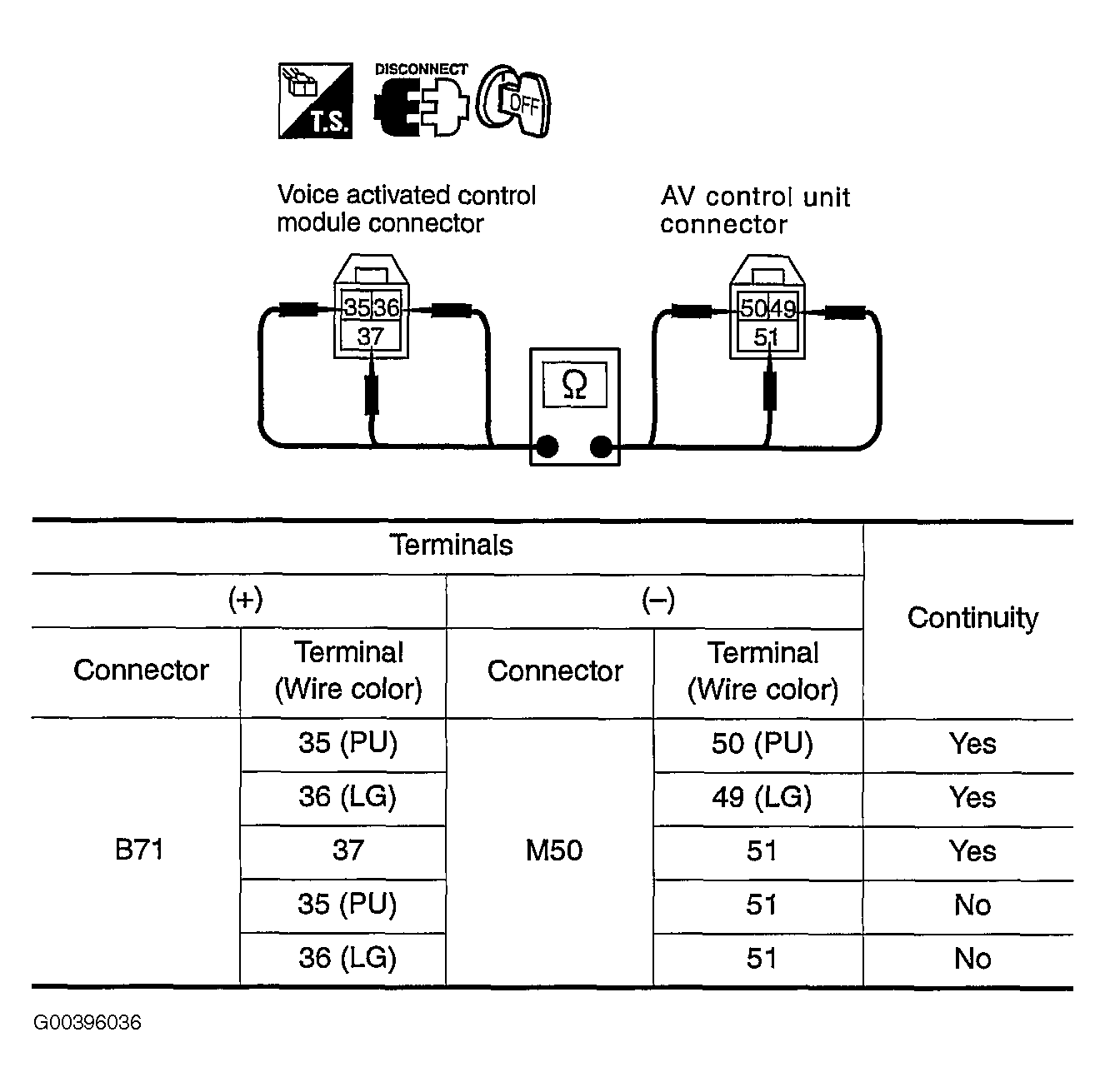

  Fig 2: Checking AV Communication Line (Without Navigation)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace voice activated control module.
2. NG: Repair harness or connector.
