CONSULT-II Basic Operation Procedure

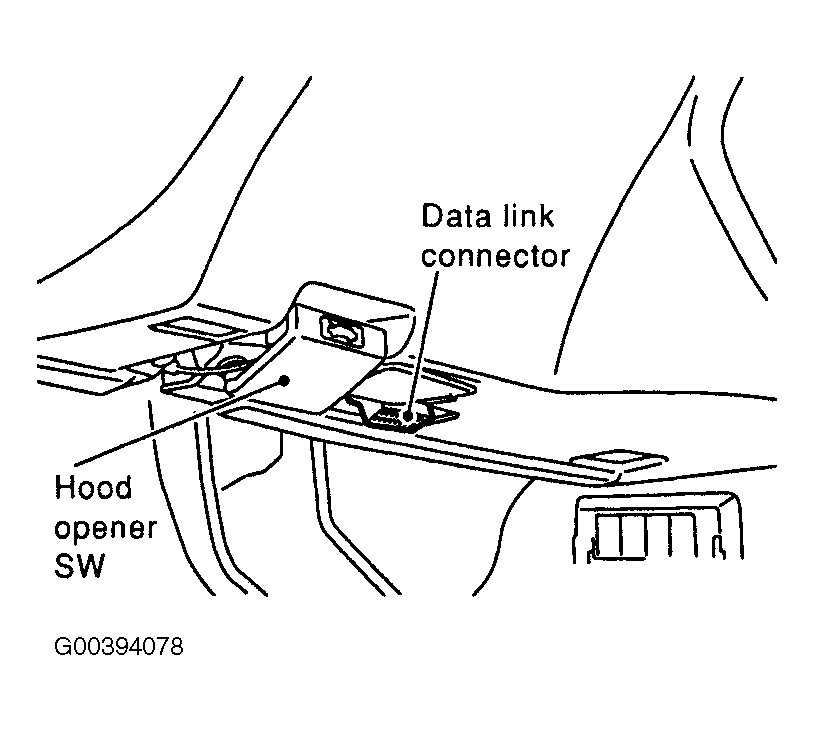

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON. For location of data link connector, see Figure .
  2. Touch "START (NISSAN BASED VHCL)".
  3. Touch "IVMS". If "IVMS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
