Terminals And Reference Value Chart For BCM

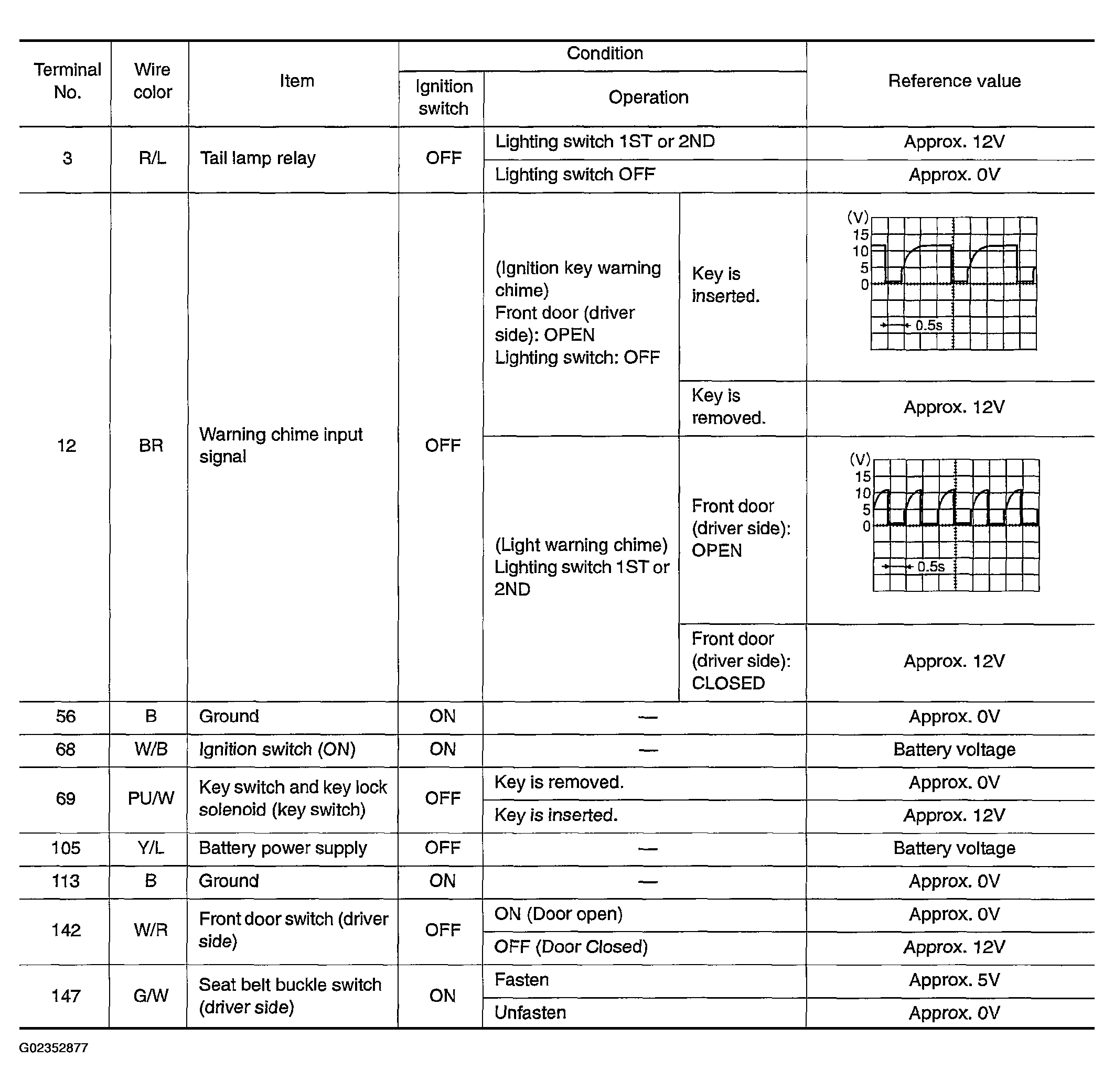

Fig 1: Terminals & Reference Value Chart For BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
