Disassembly and Assembly: Assembly
Installation is in the reverse order of removal.
Install inner rotor and outer rotor with the punched marks on the oil pump cover side.

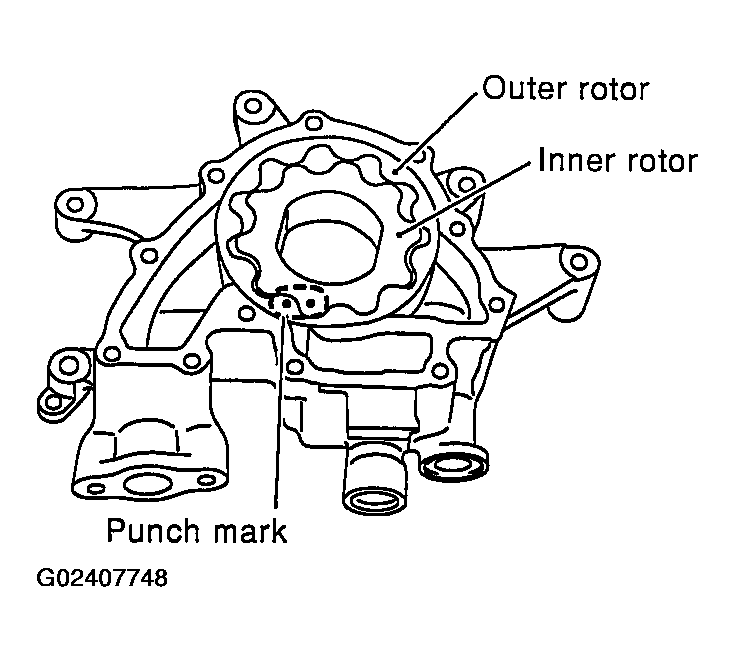

Fig 1: Identifying Inner And Outer Rotor Punch Marks
Courtesy of NISSAN MOTOR CO., U.S.A.
