Removal And Installation: Notes

CAUTION:
  • Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
  • Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.
  • Be careful not to cut your hand on the insulator edge.

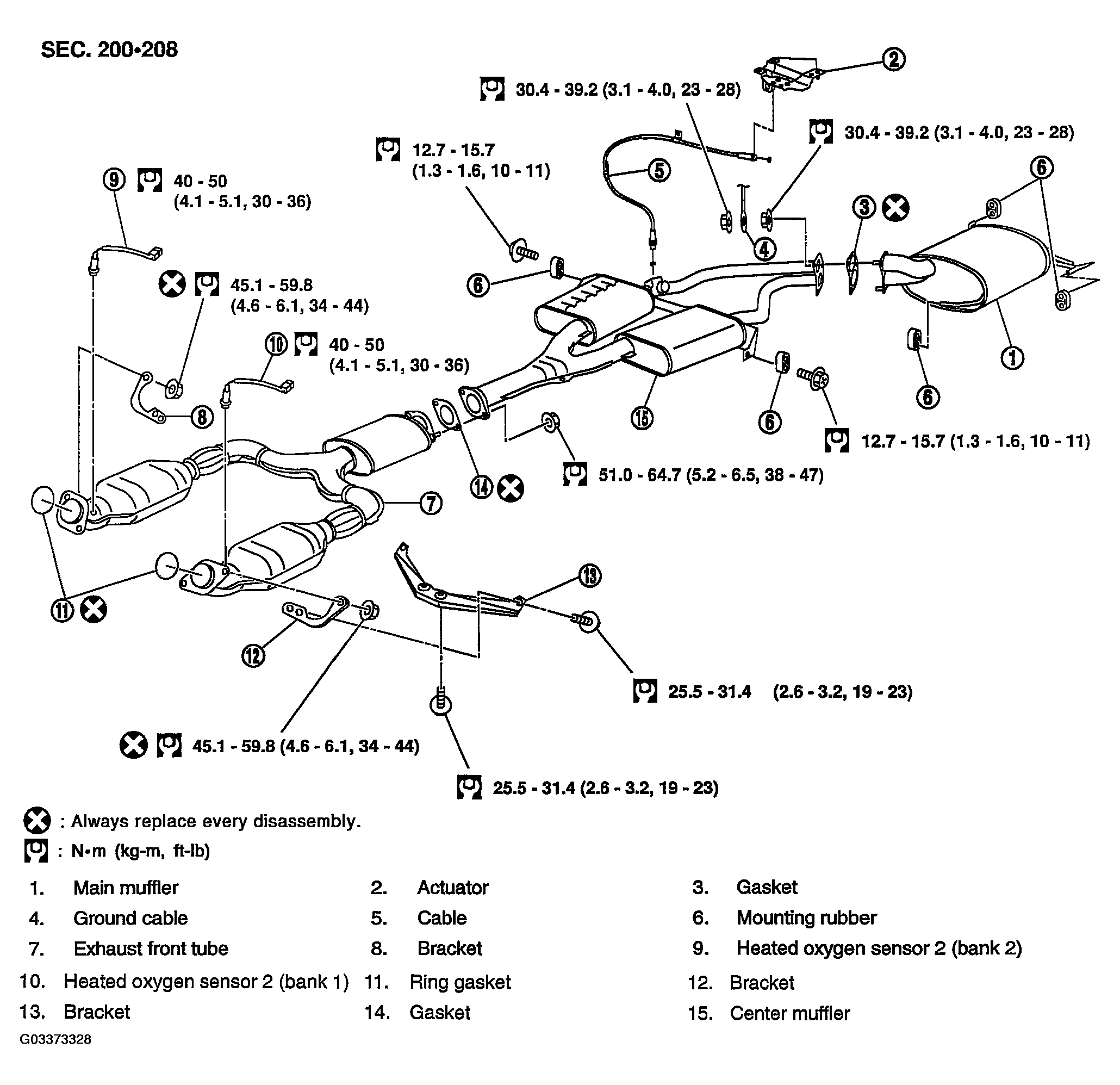

    Fig 1: Checking Exhaust System (2 Of 2)
    G03373328Courtesy of NISSAN MOTOR CO., U.S.A.
