10. Check Ignition Timing

1. Run engine at idle.
2. Check ignition timing with a timing light.
   1. 12 +/- 5° BTDC (in P or N position)

OK or NG

OK (With CONSULT-II): GO TO 19. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL .

OK (Without CONSULT-II): GO TO 20. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL .

NG : GO TO 11.

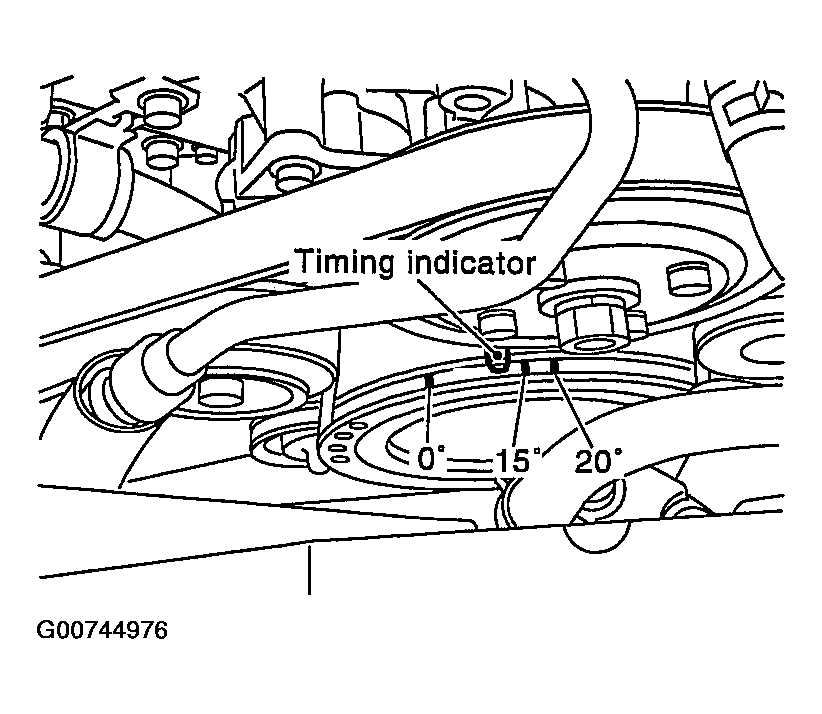

Fig 1: View Of Timing Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.
