Overall Inspection Sequence

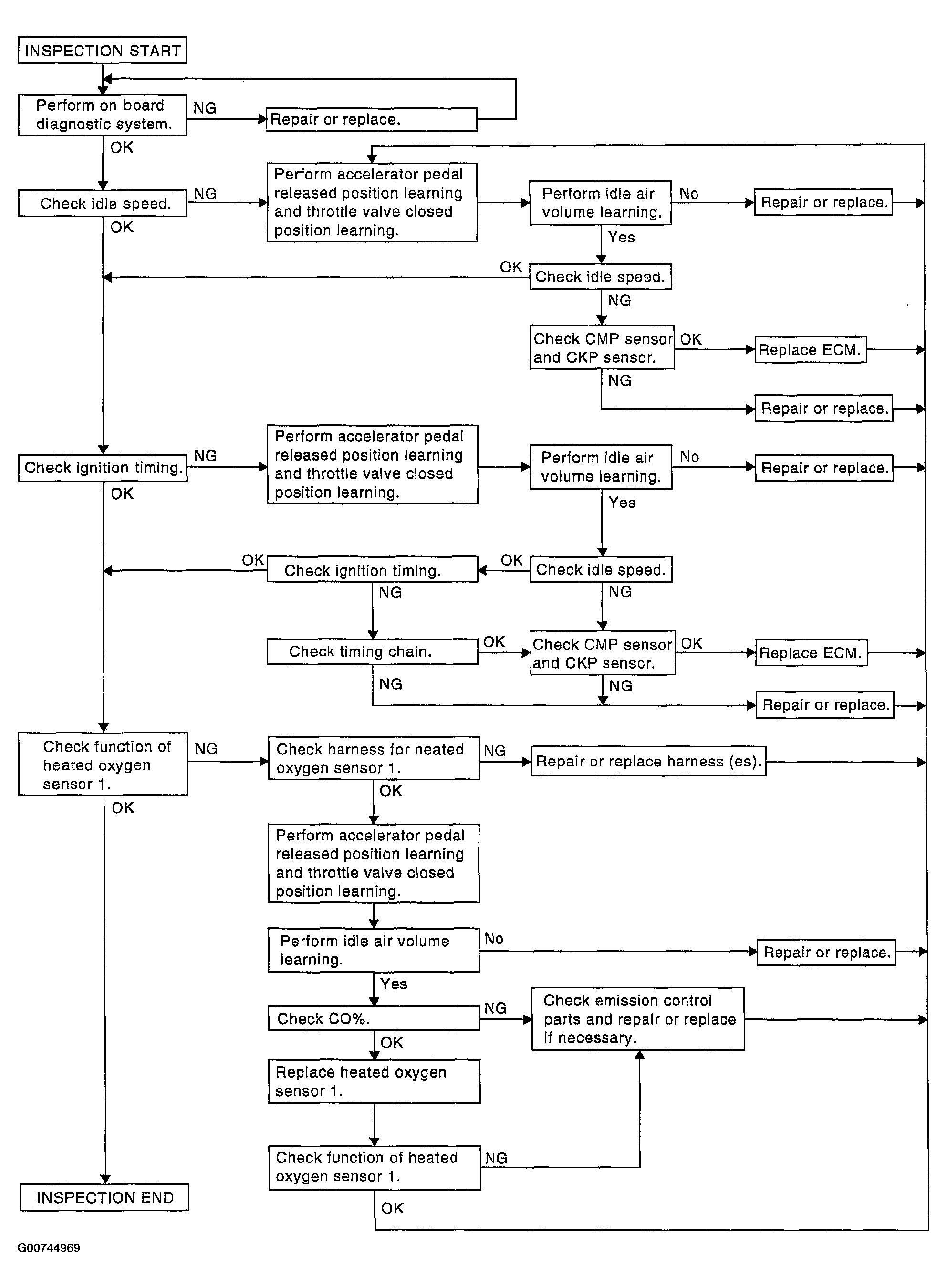

Fig 1: Overall Inspection Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
