Intake Valve Timing Control Solenoid Valve

Disconnect intake valve timing control solenoid valve harness connector.
Check resistance between intake valve timing control solenoid valve terminals as follows.

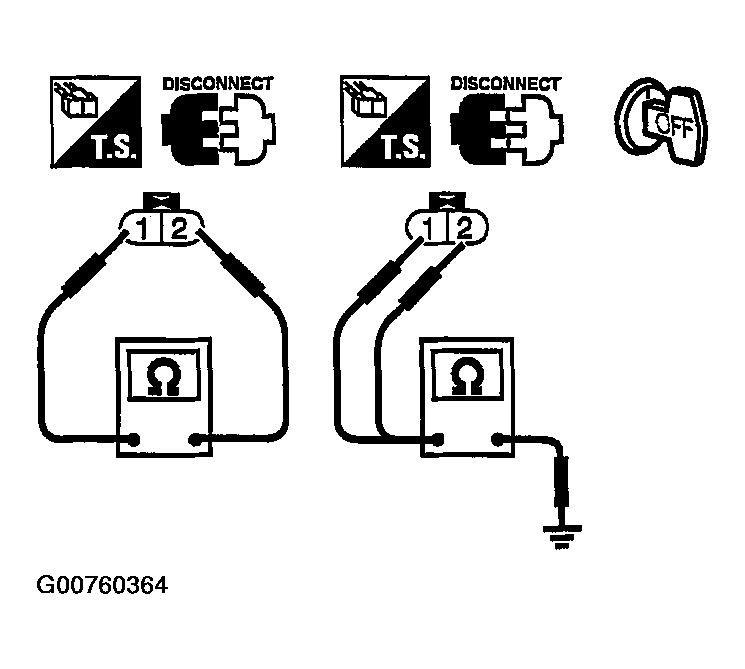

Fig 1: Checking Intake Valve Timing Control Solenoid Valve Resistance (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

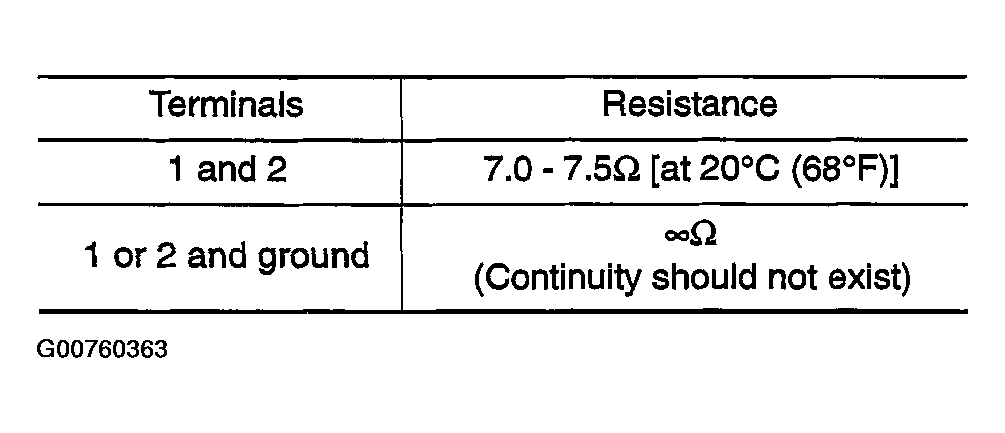

Fig 2: Checking Intake Valve Timing Control Solenoid Valve Resistance (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
