Procedure For Malfunction A

With CONSULT-II

1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive seconds.

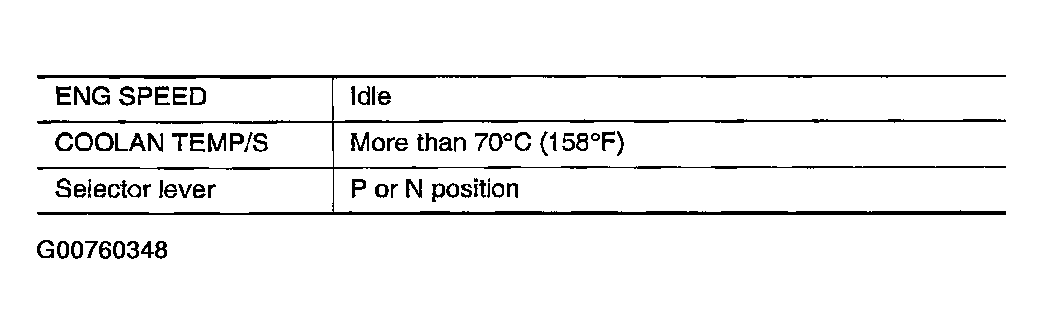

   Fig 1: Maintaining Conditions (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Maintain the following conditions for at least 20 consecutive seconds.

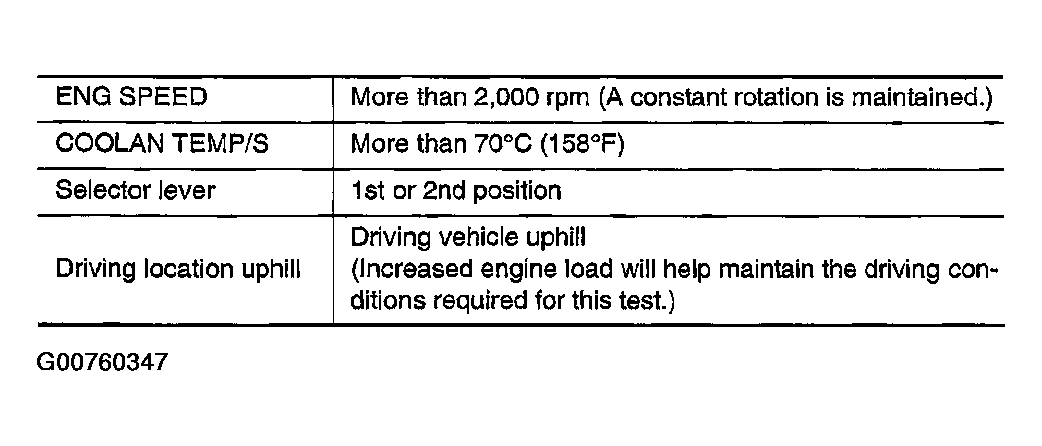

   Fig 2: Maintaining Conditions (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. If the 1st trip DTC is detected, go to Diagnostic Procedure  .

With GST

Follow the procedure With CONSULT-II above.
