Procedure For Malfunction B

With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Maintain the following conditions for at least 10 consecutive seconds.

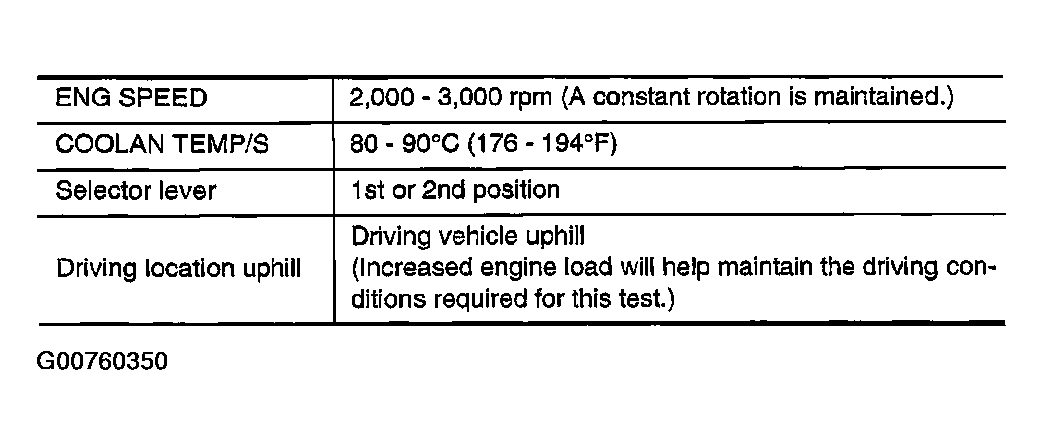

    Fig 1: Maintaining Conditions
    G00760350Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If the 1st trip DTC is detected, go to Diagnostic Procedure  .

With GST

Follow the procedure With CONSULT-II above.
