2. Check Intake Valve Timing Control Position Sensor Power Supply Circuit

1. Disconnect intake valve timing control position sensor harness connector.

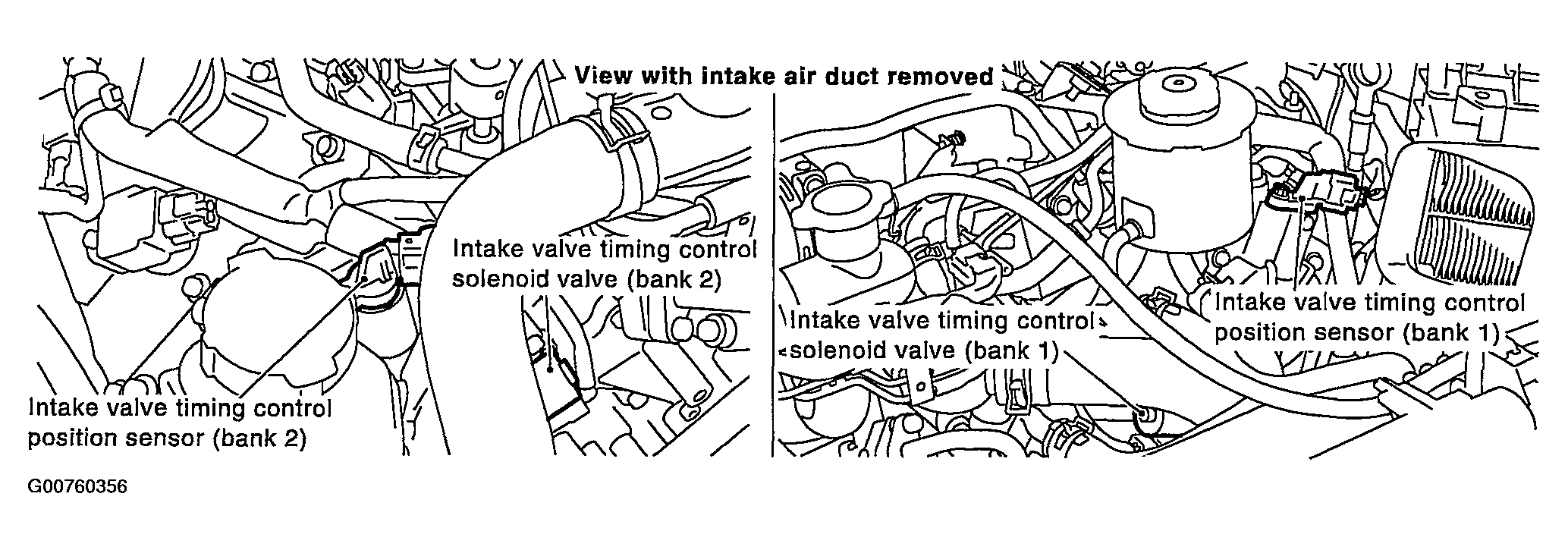

   Fig 1: Locating Intake Valve Timing Control Position Sensors

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sensor terminal 3 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

OK: GO TO 4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT .

NG: GO TO 3.

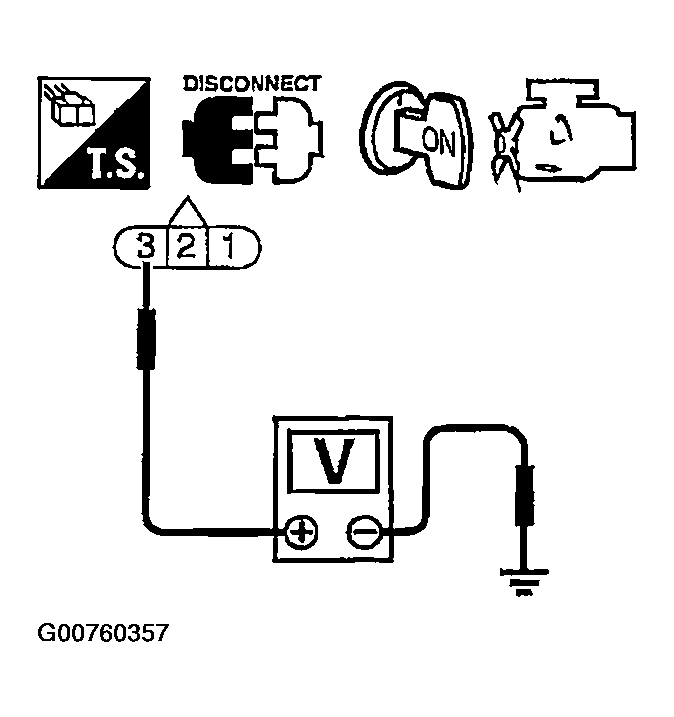

Fig 2: Checking voltage between intake valve timing control position sensor terminal 3 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
